Sustainable Agriculture » Rainwater Harvesting for Agriculture

What you'll learn this session

Study time: 30 minutes

The principles and importance of rainwater harvesting for sustainable agriculture
Different rainwater harvesting techniques and systems used globally
Benefits and challenges of implementing rainwater harvesting
Case studies of successful rainwater harvesting projects
How rainwater harvesting contributes to food security and climate resilience

Introduction to Rainwater Harvesting for Agriculture

Rainwater harvesting is a simple but powerful technique that has been used for thousands of years to collect and store rainfall for later use. In agriculture, this practice can make a huge difference between crop failure and success, especially in areas with unreliable rainfall or water scarcity.

Key Definitions:

Rainwater harvesting: The collection and storage of rainfall for later productive use in agriculture.
Water security: Having reliable access to enough good quality water for farming, drinking and sanitation.
Catchment area: The surface from which rainwater is collected (like roofs, land surface, or rock surfaces).
Runoff: Rainfall that flows over the land surface rather than soaking into the ground.

💧 Water Facts

Agriculture uses about 70% of the world's freshwater withdrawals. With global water scarcity affecting more than 2 billion people, rainwater harvesting offers a sustainable solution to reduce pressure on groundwater and surface water sources.

Why Harvest Rainwater for Agriculture?

Rainwater is a free, relatively clean source of water that falls directly onto our farms. Instead of letting it run off and potentially cause erosion, we can capture and use it when needed most. This is especially important as climate change makes rainfall patterns less predictable in many regions.

✅ Benefits

Reduces dependence on groundwater and mains water
Helps farmers survive dry periods and droughts
Decreases soil erosion and flooding
Improves crop yields and food security
Often requires low technology and investment

⚠ Challenges

Requires initial investment in infrastructure
Storage capacity limitations
Maintenance requirements
Dependent on rainfall amounts and patterns
May need water quality management

Rainwater Harvesting Techniques

There are many different ways to harvest rainwater for agriculture, from simple, low-cost methods to more complex systems. The best approach depends on local conditions, including rainfall patterns, topography, soil type and available resources.

1. Surface Runoff Collection

This involves capturing rainwater that flows across the land surface before it can soak into the ground or enter waterways.

💧 Contour Bunds

Low ridges built along land contours to slow water flow and increase infiltration. Popular in semi-arid regions of Africa and India.

💧 Check Dams

Small barriers built across water channels to slow flow and trap water. Effective in gullies and seasonal streams.

💧 Water Pans

Excavated depressions that collect surface runoff. Common in East Africa for livestock and small-scale irrigation.

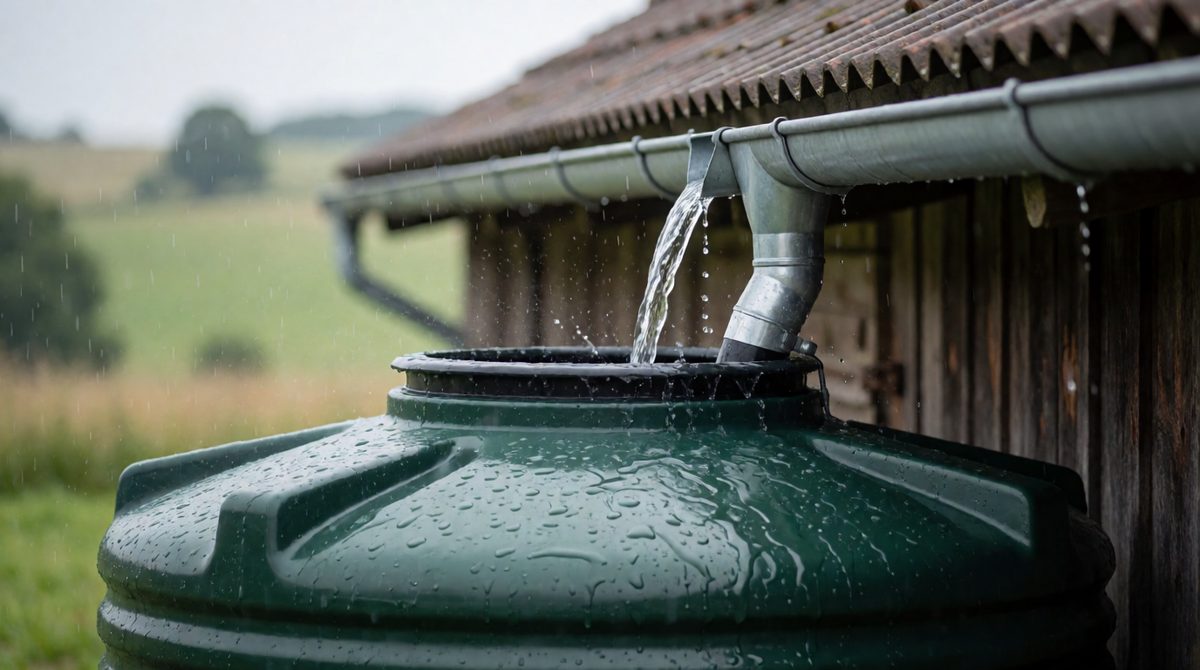

2. Rooftop Collection Systems

Rooftop harvesting collects rainwater from roofs and directs it to storage tanks or directly to fields. This method typically provides cleaner water than surface collection.

A basic rooftop system includes:

Catchment surface: Usually a roof (metal, tile, or concrete)
Gutters and downpipes: To channel water from the roof
First flush diverter: To remove initial dirty water
Storage tank: Made from plastic, concrete, ferrocement, or other materials
Delivery system: Pipes, pumps, or irrigation equipment to get water to crops

Case Study: Rooftop Harvesting in Schools, Uganda

In eastern Uganda, schools have installed rooftop rainwater harvesting systems that collect water during rainy seasons. The stored water is used for school gardens that grow vegetables for school meals, improving nutrition and teaching students about sustainable agriculture. Each system can collect up to 20,000 litres during rainy seasons, enough to maintain vegetable gardens through dry periods.

3. In-Situ Water Conservation

These techniques focus on helping rainfall soak into the soil exactly where it falls, making it available to plant roots rather than running off.

🌿 Mulching

Covering soil with organic materials (straw, leaves, grass clippings) or plastic sheets to reduce evaporation and improve infiltration. Mulching can reduce water needs by up to 25% while also suppressing weeds and adding organic matter to soil.

🌿 Conservation Tillage

Reducing soil disturbance to maintain soil structure and organic matter, which improves water infiltration and retention. No-till farming can increase soil moisture by 5-10% compared to conventional tillage.

4. Micro-Catchment Systems

Small-scale structures designed to collect runoff from a limited area and concentrate it where plants are growing.

🌱 Zai Pits

Small pits (20-30cm wide, 10-15cm deep) dug in fields and filled with organic matter. Seeds are planted in these pits, which collect and hold rainwater. This traditional technique from West Africa has helped reclaim degraded land in Burkina Faso and Niger.

🌱 Half-Moons

Semicircular bunds that catch runoff water flowing down a slope. The collected water is concentrated in the planting area within the half-moon. In Niger, half-moons have increased millet yields by 400% in some areas.

Implementing Rainwater Harvesting: A Step-by-Step Approach

Setting up a rainwater harvesting system for agriculture requires careful planning and consideration of local conditions:

Assess water needs: Calculate how much water your crops require throughout their growing season.
Analyse rainfall patterns: Study local rainfall data to understand when and how much rain typically falls.
Evaluate site conditions: Consider topography, soil type, existing water sources and available space.
Choose appropriate techniques: Select methods that match your needs, resources and conditions.
Design the system: Plan the size and layout of your harvesting structures.
Implement in phases: Start small, test what works and expand gradually.
Maintain regularly: Clean gutters, repair leaks and remove sediment from storage structures.

Case Study: Rainwater Harvesting in Rajasthan, India

In the arid state of Rajasthan, traditional rainwater harvesting structures called 'johads' (earthen check dams) have been revived by local communities with the help of NGOs. Over 8,600 johads have been built or restored in more than 1,000 villages, recharging groundwater and bringing dried-up rivers back to life. This has enabled year-round agriculture in an area that receives only 600mm of rainfall annually, most of it during the monsoon season. Crop yields have increased by 20-30% and previously abandoned farmland has been brought back into production.

The Future of Rainwater Harvesting

As climate change intensifies, rainwater harvesting is becoming even more important for sustainable agriculture. New technologies and approaches are making these systems more efficient and accessible:

Smart systems: Using sensors and automated controls to manage water collection and distribution
Hybrid approaches: Combining rainwater harvesting with other water sources and conservation techniques
Community-scale systems: Sharing infrastructure and resources among multiple farms
Policy support: Governments increasingly providing incentives and technical assistance for rainwater harvesting

Conclusion

Rainwater harvesting represents one of the most accessible and effective approaches to sustainable agriculture, especially in regions facing water scarcity or unpredictable rainfall. By capturing rain when it falls and storing it for later use, farmers can reduce their vulnerability to drought, improve crop yields and contribute to environmental conservation.

The techniques range from simple, traditional methods that have been used for centuries to modern, high-tech systems. What they all have in common is a focus on working with nature rather than against it – capturing a valuable resource that would otherwise be lost.

As you've learned in this session, successful rainwater harvesting depends on understanding local conditions and choosing appropriate techniques. With proper planning and implementation, these systems can transform agricultural productivity while promoting sustainability and resilience.
