Managing the Impacts of Natural Hazards » Flood Monitoring and Warning Systems

What you'll learn this session

Study time: 30 minutes

The importance of flood monitoring and warning systems
Different types of flood monitoring technologies
How flood warning systems work
Case studies of effective flood warning systems
The role of communities in flood monitoring
Limitations and challenges of flood warning systems

Introduction to Flood Monitoring and Warning Systems

Floods are among the most common and destructive natural hazards worldwide. They can happen quickly with devastating consequences for communities, infrastructure and the environment. Effective monitoring and warning systems are vital tools that help communities prepare for and respond to flood events, potentially saving lives and reducing damage.

Key Definitions:

Flood monitoring: The process of observing and measuring water levels, rainfall and other factors that contribute to flooding.
Flood warning system: A network of tools and procedures designed to detect flood conditions and alert communities before flooding occurs.
Lead time: The period between a warning being issued and the actual flood event occurring.
Hydrological data: Information about water movement, including river levels, rainfall and soil moisture.

🛠 Why Monitor Floods?

Flood monitoring systems serve several crucial purposes:

Provide advance warning to at-risk communities
Allow time for evacuation and emergency response
Help authorities deploy resources effectively
Reduce economic losses and property damage
Collect data for future flood prediction models

⚠ The Cost of Floods

Without proper monitoring and warning systems:

Floods cause over £1 billion in damage annually in the UK
Approximately 5.2 million properties in England are at risk of flooding
Global economic losses from floods exceed £50 billion yearly
Communities have little time to prepare or evacuate
Recovery takes longer and costs more

Flood Monitoring Technologies

Modern flood monitoring relies on a range of technologies that work together to collect data about water levels, rainfall and other relevant factors. These technologies form the backbone of effective warning systems.

River and Stream Gauges

These devices measure water levels in rivers and streams in real-time. When water reaches a predetermined level, it can trigger warnings.

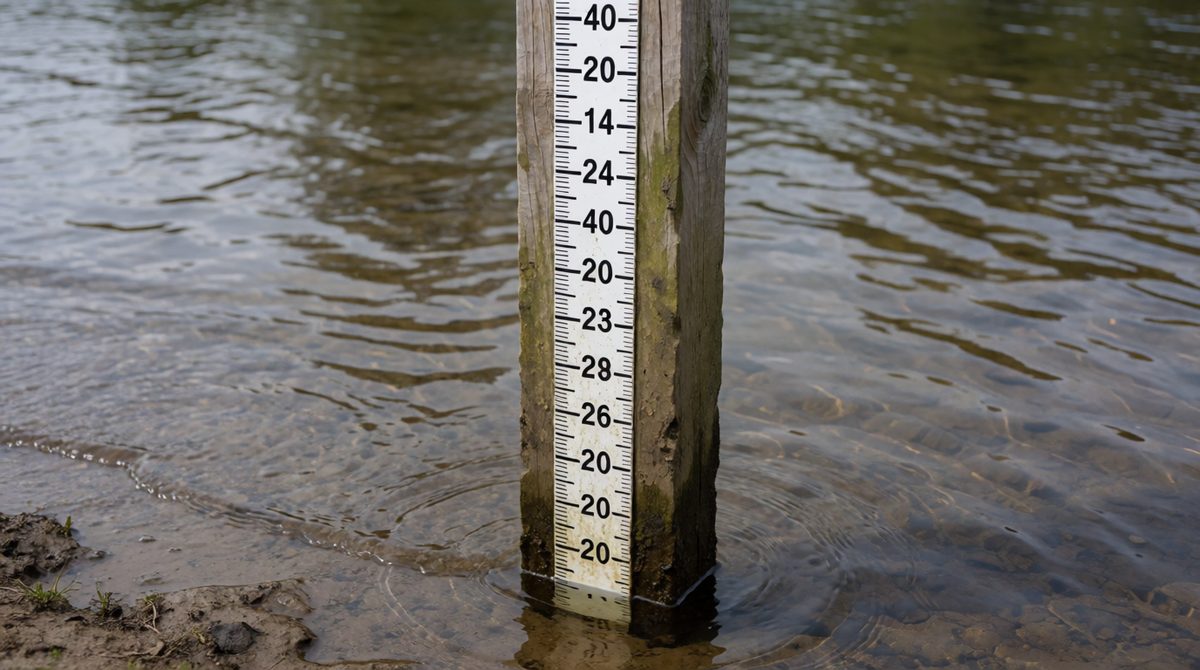

💧 Staff Gauges

Simple visual markers that show water height. They require manual observation but are reliable and don't need power.

📶 Automated Gauges

Electronic sensors that continuously measure water levels and transmit data to monitoring centres. They provide real-time information.

📡 Acoustic Sensors

Use sound waves to measure water levels. They're useful in turbulent water conditions where other sensors might be damaged.

Weather Monitoring Systems

Rainfall is a primary cause of flooding, so monitoring precipitation is essential for predicting potential flood events.

🌦 Rain Gauges

Measure the amount of rainfall in a specific location. Networks of rain gauges help track rainfall patterns across a region. Modern gauges can transmit data automatically to central monitoring stations.

🛫 Weather Radar

Provides a broader view of rainfall patterns across large areas. Radar can detect the intensity and movement of rain, helping to predict which areas might experience heavy rainfall that could lead to flooding.

Satellite and Remote Sensing

Satellites provide a valuable perspective for monitoring large-scale flood conditions and tracking weather systems that might cause flooding.

Satellite imagery: Can show the extent of flooding over large areas, helping to identify affected regions.
Soil moisture monitoring: Satellites can detect how saturated the ground is, which affects how much rainfall will run off into rivers.
Snow pack monitoring: Important for predicting spring floods caused by snowmelt.

How Flood Warning Systems Work

Effective flood warning systems involve more than just technology they require coordination between different agencies and clear communication with the public.

📊 Data Collection

Sensors and gauges collect information about rainfall, river levels and weather conditions. This data is transmitted to monitoring centres.

💻 Analysis

Computer models process the data to predict how water levels will change and when flooding might occur. Meteorologists and hydrologists interpret these predictions.

📢 Warning Dissemination

When flooding is predicted, warnings are issued through multiple channels: TV, radio, social media, text alerts, sirens and door-to-door notifications in high-risk areas.

Case Study Focus: UK Flood Warning System

The Environment Agency in England operates a comprehensive flood warning system that includes:

Over 5,000 monitoring stations across England
Three levels of flood alerts: Flood Alert, Flood Warning and Severe Flood Warning
The "Floodline" service that provides 24-hour information
An online flood map showing current warnings and long-term flood risk
A free flood warning service that sends automated phone messages, texts, or emails to registered users

During the winter floods of 2015-16, this system helped thousands of people prepare for flooding, with over 100,000 properties receiving direct warnings before floods hit.

Community Involvement in Flood Monitoring

Local communities play a vital role in effective flood monitoring and warning systems. Their knowledge and participation can significantly improve the effectiveness of official systems.

👥 Citizen Science

Community members can contribute valuable data by:

Reporting local flood conditions
Maintaining simple rain gauges
Sharing photos and observations during flood events
Using smartphone apps designed for flood reporting

In the UK, the Flood Network project uses low-cost sensors installed by community volunteers to supplement official monitoring systems.

💬 Local Knowledge

Communities often have detailed knowledge about:

Historical flooding patterns in their area
Early warning signs specific to their location
Vulnerable people who may need extra help during evacuations
Local drainage systems and potential blockage points

This knowledge can help authorities design more effective warning systems tailored to local conditions.

Limitations and Challenges

While flood monitoring and warning systems save lives and reduce damage, they face several challenges:

Flash floods: These occur very quickly, sometimes with little warning time. In steep valleys or urban areas with a lot of concrete, water can rise extremely rapidly.
Technical failures: Sensors can malfunction, power outages can affect automated systems and communication networks might fail during severe weather.
Warning fatigue: If people receive too many warnings that don't result in serious flooding, they might start ignoring future alerts.
Access issues: Not everyone has equal access to warning information, particularly elderly people or those without internet or mobile phones.
Maintenance costs: Monitoring networks require ongoing maintenance and updates, which can be expensive for local authorities.

Case Study: Bangladesh Flood Forecasting and Warning Centre

Bangladesh is one of the most flood-prone countries in the world, with about 80% of its land forming a floodplain. The Bangladesh Flood Forecasting and Warning Centre (FFWC) has developed an effective system despite limited resources:

Uses a combination of river gauges, rainfall data and satellite information
Provides forecasts up to 10 days in advance for major rivers
Disseminates warnings through multiple channels, including community volunteers with megaphones, radio and mobile phones
Has helped reduce flood-related deaths significantly since the 1970s
Demonstrates how even countries with limited resources can develop effective warning systems

The Future of Flood Monitoring

Flood monitoring and warning systems continue to evolve with new technologies and approaches:

Artificial Intelligence: Machine learning algorithms can improve flood prediction accuracy by analysing patterns in historical data.
Social media analysis: Monitoring platforms like Twitter and Facebook can help detect flooding events as they happen through user reports.
Mobile apps: Smartphone applications can provide personalised flood warnings based on a user's location.
Integrated systems: Combining flood warnings with other emergency services and infrastructure management.
Internet of Things (IoT): Networks of low-cost sensors can provide more detailed monitoring across wider areas.

As climate change increases the frequency and severity of extreme weather events, effective flood monitoring and warning systems will become even more important for protecting communities worldwide.
