Energy Resources and Electricity Generation » Hydro-electric Power Generation

What you'll learn this session

Study time: 30 minutes

The principles of hydroelectric power generation
The components of a hydroelectric power station
Advantages and disadvantages of hydroelectric power
Different types of hydroelectric schemes
Environmental and social impacts of hydroelectric dams
Case studies of major hydroelectric projects

Introduction to Hydroelectric Power Generation

Hydroelectric power is one of the oldest and most widely used forms of renewable energy. It harnesses the energy of flowing water to generate electricity without burning fuel or creating direct pollution. Today, hydropower provides about 16% of the world's electricity and is the largest source of renewable electricity globally.

Key Definitions:

Hydroelectric power: Electricity generated by converting the energy of flowing water into electrical energy.
Potential energy: Stored energy that water has due to its height (elevation).
Kinetic energy: Energy that water possesses when it's moving.
Head: The vertical distance between the water source and the turbines.
Reservoir: An artificial lake created by a dam to store water.

⚡ How Hydroelectric Power Works

Hydroelectric power generation is based on a simple principle: water flows from a higher level to a lower level and this movement creates energy that can be captured and turned into electricity. The process follows these steps:

Water is collected in a reservoir behind a dam
When released, the water flows through pipes (penstocks) to turbines
The moving water spins the turbines
The turbines drive generators that produce electricity
Transformers convert the electricity to a suitable voltage for transmission

🛠 Components of a Hydroelectric Plant

A typical hydroelectric power station consists of:

Dam: Holds back water to create a reservoir
Intake: Where water enters the system
Penstocks: Pipes that carry water to the turbines
Turbines: Spin when hit by moving water
Generators: Convert mechanical energy to electrical energy
Transformer: Changes voltage for transmission
Outflow: Where water returns to the river

Types of Hydroelectric Power Schemes

Hydroelectric power can be generated using different approaches, depending on the local geography, water resources and electricity needs.

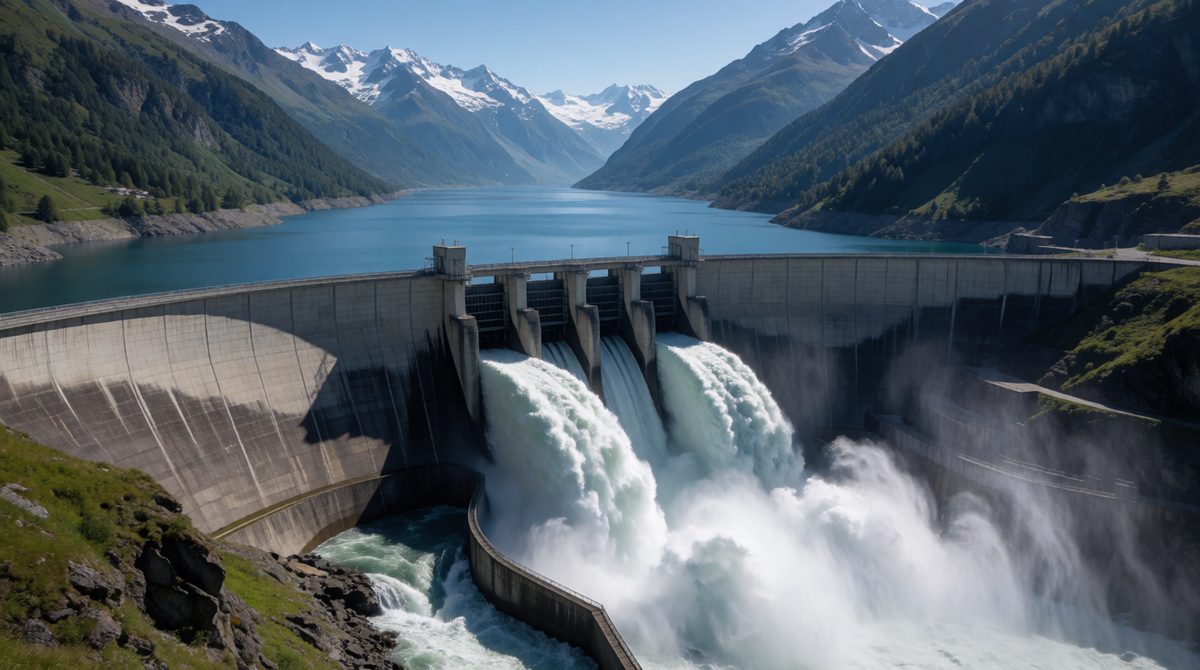

🏮 Impoundment Dams

The most common type, where a large dam creates a reservoir. Water is released through turbines when electricity is needed. Examples include the Three Gorges Dam in China and Hoover Dam in the USA.

💧 Run-of-River

Uses the natural flow of a river to generate electricity without large reservoirs. These have less environmental impact but provide less consistent power. The Rhine River plants in Europe are good examples.

📊 Pumped Storage

Acts like a battery by pumping water uphill when electricity demand is low, then releasing it to generate power during peak demand. Dinorwig in Wales is a famous pumped storage facility.

Advantages and Disadvantages

Like all energy sources, hydroelectric power has benefits and drawbacks that must be carefully considered.

✔ Advantages

Renewable: Water is constantly replenished by the water cycle
Clean: No direct air pollution or greenhouse gas emissions during operation
Reliable: Can generate power consistently (unlike wind or solar)
Flexible: Output can be adjusted quickly to meet demand
Long-lasting: Dams can operate for 50-100 years
Multi-purpose: Dams also provide flood control, irrigation and recreation
Low operating costs: Once built, running costs are relatively low

❌ Disadvantages

High initial cost: Expensive to build dams and infrastructure
Habitat disruption: Flooding areas destroys natural habitats
Fish migration: Dams block fish from reaching spawning grounds
Sediment buildup: Dams trap sediment that would naturally flow downstream
Displacement: People may need to relocate when valleys are flooded
Location-specific: Requires suitable geography and water supply
Drought vulnerability: Reduced output during dry periods

Environmental and Social Impacts

Hydroelectric projects significantly alter landscapes and ecosystems, creating both positive and negative effects on the environment and local communities.

Environmental Impacts

Large dams and reservoirs change river ecosystems in several ways:

Water quality changes: Reservoirs have different temperature, oxygen levels and flow patterns than natural rivers
Greenhouse gas emissions: Rotting vegetation in new reservoirs can release methane
Downstream impacts: Altered water flow affects downstream habitats and ecosystems
Sedimentation: Dams trap sediment that would naturally fertilise floodplains
Biodiversity loss: Flooding destroys terrestrial habitats while barriers affect aquatic species

Social Impacts

Communities are affected in various ways by hydroelectric projects:

Displacement: People must relocate when valleys are flooded for reservoirs
Cultural heritage loss: Historical sites and cultural landmarks may be submerged
Economic benefits: Jobs created during construction and operation
Improved infrastructure: Roads, electricity and other services often accompany projects
Recreation opportunities: Reservoirs can be used for fishing, boating and tourism

Case Study: Three Gorges Dam, China

The Three Gorges Dam on the Yangtze River is the world's largest hydroelectric power station:

Capacity: 22,500 MW (enough to power 60 million homes)
Completed in 2012 after 18 years of construction
Cost: Approximately £23 billion
Reservoir length: 600 km (375 miles)
Environmental impact: Flooded 632 km² of land, affecting 1.3 million people who had to relocate
Benefits: Flood control, improved navigation, clean electricity
Concerns: Loss of archaeological sites, wildlife habitat destruction, landslide risks

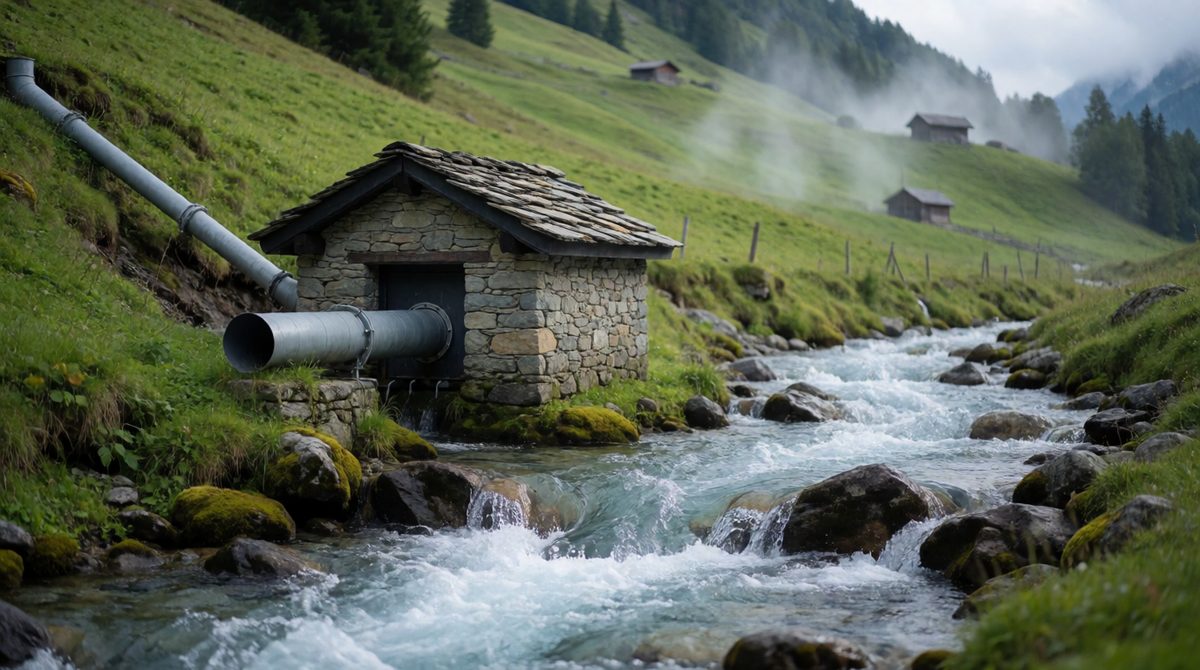

Micro-Hydropower: Small-Scale Solutions

Not all hydroelectric projects need to be massive. Micro-hydropower systems can generate electricity for small communities with less environmental impact.

🏠 Community-Scale Hydropower

Small hydropower systems (typically less than 10 MW) can provide electricity to remote communities without access to the national grid. These systems:

Can be installed on small streams or rivers
Often don't require large dams or reservoirs
Have minimal environmental impact
Can be built and maintained by local communities
Provide reliable power for rural development

🌎 Global Examples

Micro-hydropower is widely used in mountainous regions:

Nepal: Over 2,000 micro-hydro plants power remote Himalayan villages
Scotland: Community-owned schemes on the Isle of Eigg provide renewable electricity
Peru: Small hydro plants bring electricity to Andean communities
Indonesia: Island communities use micro-hydro for sustainable development

Case Study: Dinorwig Power Station, Wales

Dinorwig is one of the world's largest pumped storage power stations:

Located inside Elidir Mountain in Snowdonia National Park
Capacity: 1,800 MW
Can reach full power in just 16 seconds
Uses excess electricity (often at night) to pump water uphill
Releases water to generate electricity during peak demand
Nicknamed "Electric Mountain"
Helps balance the UK's electricity grid, especially with increasing wind power

Future of Hydroelectric Power

Hydroelectric power continues to evolve with new technologies and approaches to address environmental concerns while maximising energy production.

Fish-friendly turbines: New designs allow fish to pass through safely
In-stream generation: Turbines placed in rivers without dams
Tidal and wave power: Capturing energy from ocean movements
Upgrading existing dams: Adding power generation to non-powered dams
Improved environmental management: Better practices to reduce ecological impacts
Integration with other renewables: Using hydropower to balance intermittent sources like wind and solar

As the world transitions to cleaner energy sources, hydroelectric power will continue to play a vital role in providing renewable electricity while balancing environmental and social considerations.
