Energy Resources and Electricity Generation » Solar Power Generation

What you'll learn this session

Study time: 30 minutes

The principles of solar power generation and how it works
Different types of solar power technologies (photovoltaic and solar thermal)
Advantages and disadvantages of solar power
Global distribution of solar resources and major solar installations
Environmental impacts of solar power generation
Case studies of successful solar power implementation
Future developments in solar technology

Introduction to Solar Power Generation

Solar power is energy harnessed from the sun's rays and converted into electricity. It's one of the fastest-growing renewable energy sources worldwide, with installations doubling every couple of years. The sun delivers more energy to Earth in one hour than humanity uses in an entire year - we just need to capture it!

Key Definitions:

Solar Energy: Radiant light and heat from the sun that can be harnessed using different technologies.
Photovoltaic (PV) Cells: Devices that convert sunlight directly into electricity using semiconducting materials.
Solar Thermal Energy: Technology that captures the sun's heat to produce steam and generate electricity.
Solar Insolation: The amount of solar radiation received on a given surface area in a given time period.

☀ How Solar Power Works

Solar power works by capturing energy from sunlight and converting it into electricity. There are two main ways to do this:

1. Photovoltaic (PV) Systems: These use cells made of silicon or other materials that create an electric current when exposed to sunlight. This is called the photovoltaic effect, discovered by French physicist Edmond Becquerel in 1839.

2. Solar Thermal Systems: These concentrate sunlight to heat a fluid, produce steam and drive a turbine to generate electricity - similar to conventional power plants but using the sun instead of fossil fuels.

💡 The Photovoltaic Effect

When sunlight hits a solar cell:

Photons (light particles) knock electrons loose from atoms in the semiconductor material
The cell's structure forces these electrons to flow in one direction
This flow of electrons is an electric current
Metal contacts on the cell capture this current
The current flows into wires and becomes usable electricity

Most PV cells convert 15-20% of the sunlight they receive into electricity, though lab prototypes have reached over 40% efficiency.

Types of Solar Power Technologies

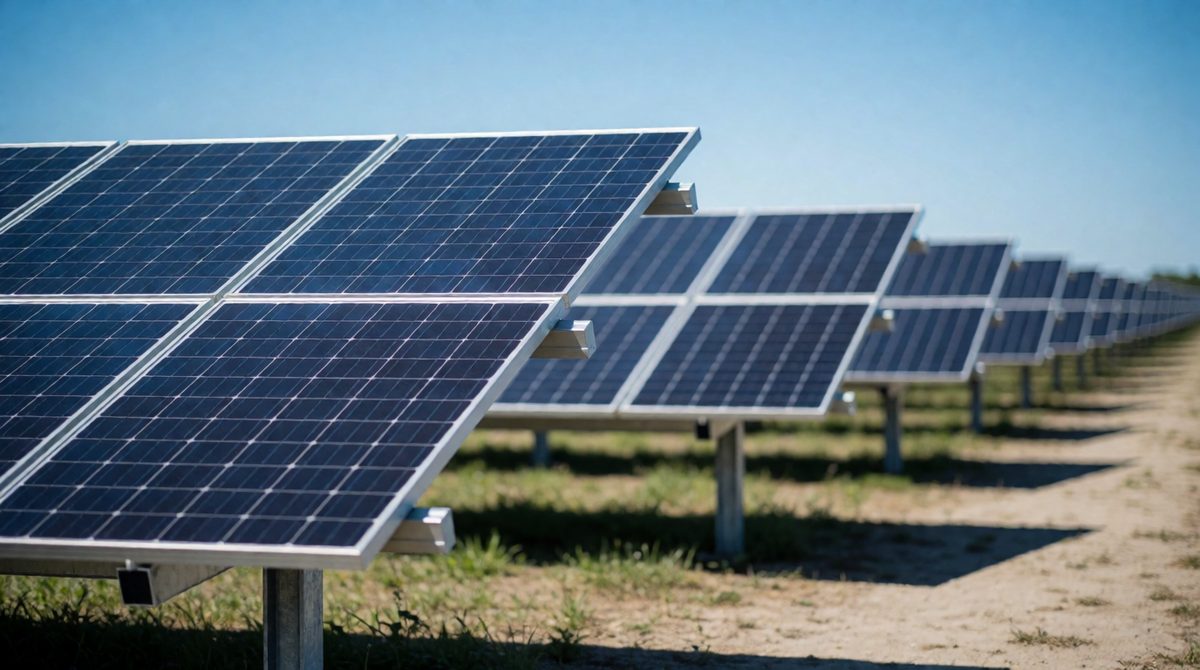

Photovoltaic (PV) Solar Systems

PV systems are the most common type of solar power. You've probably seen them on rooftops or in solar farms. They work directly with sunlight, even on cloudy days (though with reduced output).

🛠 Monocrystalline Panels

Made from single silicon crystal slices. They're the most efficient (15-22%) and longest-lasting, but also the most expensive. Recognisable by their uniform dark appearance and rounded edges.

🛠 Polycrystalline Panels

Made from fragments of silicon crystals melted together. They're less efficient (13-16%) but cheaper to produce. They have a distinctive blue, speckled appearance due to the multiple crystals.

🛠 Thin-Film Panels

Made by depositing thin layers of photovoltaic material onto a substrate. They're less efficient (10-13%) but flexible, lightweight and can be integrated into building materials. Good for spaces where traditional panels won't work.

Solar Thermal Systems

Solar thermal systems use mirrors or lenses to concentrate sunlight onto a small area, generating intense heat that can be used to produce electricity.

🌞 Concentrated Solar Power (CSP)

CSP plants use mirrors to focus sunlight onto a receiver containing a heat-transfer fluid. This creates high-temperature heat that produces steam to drive a turbine. Types include:

Parabolic Troughs: Curved mirrors focus sunlight onto tubes containing fluid
Solar Power Towers: Fields of mirrors (heliostats) concentrate light onto a central tower
Parabolic Dishes: Dish-shaped mirrors focus light onto a receiver at the focal point

A key advantage of CSP is that heat can be stored more easily than electricity, allowing power generation to continue after sunset.

🌐 Global Distribution

Solar power potential depends mainly on how much sunlight an area receives. The best locations are typically:

Regions between 15° and 35° latitude north and south of the equator
Arid and semi-arid areas with few clouds (deserts are ideal)
Areas with high solar insolation (measured in kWh/m²/day)

Top countries for solar potential include Australia, Chile, Saudi Arabia and the southwestern United States. However, even less sunny countries like Germany have successfully deployed large amounts of solar power through supportive policies.

Advantages and Disadvantages of Solar Power

✔ Advantages

Renewable: The sun will continue shining for billions of years
Zero emissions: No greenhouse gases or air pollutants during operation
Low operating costs: Once installed, fuel is free and maintenance is minimal
Energy independence: Reduces reliance on imported fuels
Modular: Can be deployed at any scale, from small home systems to massive power plants
Water conservation: PV systems use virtually no water (unlike many conventional power plants)
Job creation: The solar industry employs more people than coal, oil and gas combined in many countries

✘ Disadvantages

Intermittency: Only generates power when the sun is shining
Land use: Large solar farms require significant space
Initial cost: High upfront investment (though prices have fallen dramatically)
Storage challenges: Batteries or other storage solutions add cost
Manufacturing impacts: Production of panels involves some toxic materials
Weather dependent: Output varies with cloud cover, dust and snow
Transmission issues: Best solar resources often far from population centres

Environmental Impacts

While solar power is considered a clean energy source, it's important to understand its full environmental footprint:

Carbon footprint: Manufacturing solar panels requires energy and produces some emissions, but this "carbon debt" is typically repaid within 1-4 years of operation. Over their 25-30 year lifespan, solar panels prevent many times more emissions than were created during their production.
Land use: Large solar farms can occupy substantial areas, potentially affecting habitats. However, many installations can be placed on already-disturbed land, rooftops, or integrated into buildings.
Materials: PV manufacturing uses some hazardous materials like cadmium compounds and lead. Proper handling and recycling programs are essential.
Water use: PV systems use almost no water during operation, though CSP plants may use water for cooling. This is still far less than fossil fuel or nuclear plants.
End-of-life: Solar panel recycling is developing as an industry, with up to 95% of materials potentially recoverable.

Case Study: Benban Solar Park, Egypt

One of the world's largest solar installations, the Benban Solar Park in Egypt's Western Desert covers 37 square kilometres and generates 1.8 gigawatts of electricity - enough to power hundreds of thousands of homes.

Completed in 2019, this massive project consists of 41 separate solar plants built by different companies but connected to the same infrastructure. It's created thousands of jobs in a region with high unemployment and helps Egypt move toward its goal of generating 42% of its electricity from renewable sources by 2035.

The project demonstrates how solar power can work at massive scale even in developing economies. Its desert location maximises sunshine while minimising land-use conflicts and its modular design allowed for phased development as funding became available.

The Future of Solar Power

Solar technology continues to advance rapidly, with several exciting developments on the horizon:

Perovskite solar cells: A new type of solar cell material that's cheaper to produce and potentially more efficient than silicon. Recent lab tests have achieved over 25% efficiency.
Bifacial panels: These capture sunlight from both sides, increasing energy production by 10-30% by using light reflected from the ground.
Building-integrated photovoltaics (BIPV): Solar cells built directly into building materials like windows, walls and roofing tiles, turning entire structures into power generators.
Floating solar farms: Panels mounted on pontoons on lakes and reservoirs, saving land space and potentially reducing water evaporation.
Agrivoltaics: Combining solar panels with agriculture, allowing farming to continue beneath partially shaded panels while generating electricity.

As technology improves and costs continue to fall, solar power is expected to become the dominant form of new electricity generation in many parts of the world. The International Energy Agency predicts solar could become the largest source of electricity globally by 2050.

Key Points to Remember

Solar power harnesses energy from the sun using either photovoltaic cells (direct conversion to electricity) or thermal systems (heat to drive turbines)
PV systems can be installed at any scale, from small home systems to massive solar farms
Solar power is renewable, produces no emissions during operation and has minimal maintenance costs
Challenges include intermittency, initial cost and the need for storage solutions
Environmental impacts exist but are generally much lower than fossil fuel alternatives
Technological advances continue to improve efficiency and reduce costs
