Management of Oil Pollution » Oil Spill Management Techniques

What you'll learn this session

Study time: 30 minutes

The causes and impacts of oil pollution in marine environments
Different mechanical, chemical and biological oil spill management techniques
The advantages and limitations of each management approach
Real-world case studies of major oil spills and response efforts
Prevention strategies and international regulations for oil pollution

Introduction to Oil Spill Management

Oil spills are one of the most visible and damaging forms of marine pollution. When oil tankers crash, offshore drilling platforms fail, or pipelines rupture, the resulting spills can spread across vast areas of ocean, harming wildlife and coastal communities. Managing these disasters requires quick action and a range of specialised techniques.

Key Definitions:

Oil spill: An accidental release of oil into the environment, particularly oceans or coastal waters.
Weathering: Natural processes that change the physical and chemical properties of spilled oil over time.
Containment: Methods used to control and restrict the spread of spilled oil.
Recovery: The collection and removal of oil from the environment.

Sources and Impacts of Oil Pollution

⚠ Major Sources of Oil Spills

Transportation accidents: Tanker collisions, groundings and structural failures
Offshore drilling: Blowouts and equipment failures during extraction
Pipeline leaks: Ruptures in underwater or coastal oil pipelines
Illegal dumping: Deliberate discharge of oil waste from ships
Natural seeps: Oil naturally leaking from underwater reserves

🌐 Environmental Impacts

Wildlife: Coating of birds and marine mammals, poisoning of fish and shellfish
Habitats: Damage to coral reefs, mangroves and coastal ecosystems
Food chains: Bioaccumulation of toxic compounds through the food web
Economic: Damage to fisheries, tourism and coastal livelihoods
Long-term: Persistent contamination that can last for decades

Oil Spill Management Techniques

When an oil spill occurs, responders must quickly decide which techniques to use based on the type of oil, weather conditions, location and available resources. Management techniques fall into three main categories: mechanical, chemical and biological methods.

1. Mechanical Containment and Recovery

Mechanical methods focus on physically containing and removing oil from water using specialised equipment.

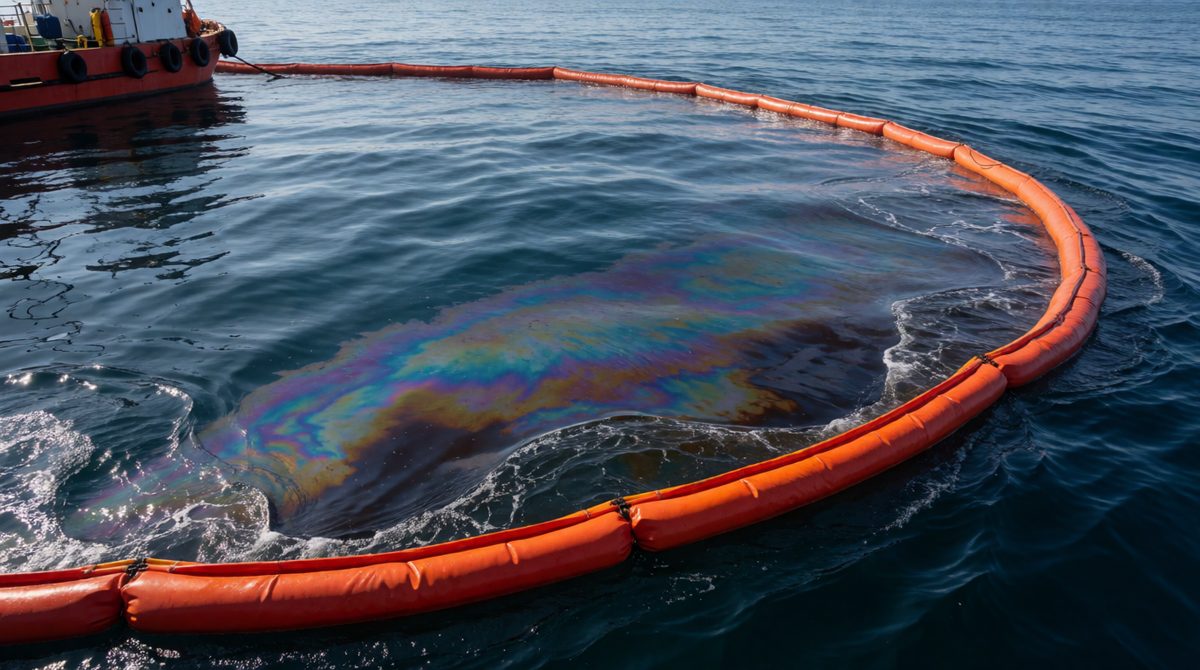

🚧 Booms

Floating barriers that contain oil and prevent it from spreading. Types include:

Containment booms (surround oil)
Deflection booms (direct oil away from sensitive areas)
Fire-resistant booms (for controlled burning)

Best for: Calm waters and fresh spills

📧 Skimmers

Devices that collect oil from the water surface:

Weir skimmers (oil flows over a dam)
Oleophilic skimmers (oil sticks to moving parts)
Vacuum skimmers (suction systems)

Best for: Thick oil slicks in protected waters

🌊 Sorbents

Materials that absorb oil but repel water:

Natural (straw, peat moss)
Synthetic (polypropylene)
Mineral-based (vermiculite)

Best for: Small spills and final cleanup

Advantages of mechanical methods: Physically remove oil from the environment, don't introduce additional chemicals, can be very effective in the right conditions.

Limitations: Weather-dependent, labour-intensive, limited by equipment availability, less effective for weathered or emulsified oil.

2. Chemical Treatment Methods

Chemical methods use specially formulated products to change the behaviour of oil, making it easier to remove or less harmful to the environment.

🔬 Dispersants

Chemical agents that break oil into small droplets that disperse throughout the water column rather than remaining on the surface.

How they work: Dispersants contain surfactants (similar to dish soap) that reduce surface tension between oil and water, allowing waves and currents to break up the oil into tiny droplets.

Application methods:

Aircraft spraying for large areas
Boat-mounted sprayers for targeted application
Subsea injection at the source of underwater leaks

Advantages: Quickly remove visible oil slicks, reduce impact on shorelines and surface-dwelling animals, accelerate natural biodegradation.

Concerns: May increase exposure of underwater organisms to toxic oil components, effectiveness varies with oil type and weather conditions, potential toxicity of dispersant chemicals themselves.

🔥 In-situ Burning

Controlled burning of oil slicks on the water's surface.

How it works: Oil is contained using fire-resistant booms and ignited, converting it to carbon dioxide and water.

Requirements:

Fresh oil with volatile components
Oil layer at least 2-3mm thick
Calm weather conditions
Safe distance from populated areas

Advantages: Removes up to 98% of contained oil, requires minimal equipment, works in ice-covered waters where other methods fail.

Concerns: Air pollution from smoke, residue may sink and affect benthic (bottom-dwelling) organisms, safety risks.

3. Biological Treatment Methods

Biological methods use natural processes to break down oil into less harmful substances.

🦋 Bioremediation

Enhancing the ability of naturally occurring microorganisms to break down oil.

Approaches include:

Bioaugmentation: Adding oil-degrading bacteria to the affected area
Biostimulation: Adding nutrients (nitrogen, phosphorus) to speed up the growth of existing oil-degrading microbes
Oxygen enhancement: Increasing oxygen availability to support aerobic biodegradation

Advantages: Environmentally friendly, effective for final cleanup of residual oil, works in sensitive areas where other methods might cause damage.

Limitations: Slow process (weeks to months), temperature-dependent, less effective for heavy crude oils, may not work in deep water or sediments.

4. Shoreline Cleanup Techniques

When oil reaches shorelines, different cleanup methods are used depending on the type of shore and degree of oiling:

Natural recovery: Allowing natural processes to clean lightly oiled areas
Manual cleanup: Workers using hand tools to remove oil and oiled materials
Mechanical removal: Using heavy equipment to remove contaminated sand or soil
Washing: Low or high-pressure water spraying to flush oil back into the water for collection
Bioremediation: Enhancing natural breakdown in place

Case Study Focus: Deepwater Horizon Oil Spill (2010)

The Deepwater Horizon disaster in the Gulf of Mexico was one of the largest marine oil spills in history, releasing approximately 4.9 million barrels of oil over 87 days.

Response techniques used:

Over 830 miles of containment boom deployed
Skimmers collected more than 34 million gallons of oily water
Unprecedented use of dispersants (1.84 million gallons), including novel subsea application
Controlled burns removed an estimated 220,000-310,000 barrels of oil
Bioremediation used for long-term shoreline cleanup

Lessons learned: The response demonstrated both the capabilities and limitations of available technologies. The scale of the disaster overwhelmed conventional response capacity, highlighting the need for prevention, better containment technology and improved coordination between agencies.

Choosing the Right Approach

Selecting appropriate oil spill management techniques depends on several factors:

📝 Key Decision Factors

Oil type: Light oils (diesel, gasoline) vs. heavy crude or bunker fuel
Weather conditions: Wind, waves, temperature, visibility
Location: Open sea, coastal waters, sensitive habitats
Time since spill: Fresh vs. weathered oil
Available resources: Equipment, trained personnel, logistics
Environmental sensitivity: Presence of vulnerable species or habitats

📈 Net Environmental Benefit Analysis

A structured approach to evaluating whether intervention will do more good than harm.

Questions considered include:

Will the technique reduce overall environmental damage?
Are there sensitive resources that need priority protection?
Could the response cause more harm than the oil itself?
What are the long-term implications of each option?

Prevention and Preparedness

The most effective oil spill management is preventing spills from happening in the first place. Key prevention strategies include:

Double-hulled tanker designs that provide an extra layer of protection
Advanced navigation systems to prevent collisions and groundings
Improved drilling safety technology for offshore operations
Regular inspection and maintenance of pipelines and facilities
Training and certification of personnel
International regulations like MARPOL (International Convention for the Prevention of Pollution from Ships)
Contingency planning with regular drills and exercises

Despite our best efforts, oil spills will continue to occur. Having well-prepared response teams, appropriate equipment and clear management plans ensures that when spills do happen, damage can be minimised through prompt and effective action.
