Increasing Agricultural Yields » Irrigation Techniques

What you'll learn this session

Study time: 30 minutes

Different irrigation techniques used in agriculture
Advantages and disadvantages of each irrigation method
Environmental impacts of irrigation
Case studies of irrigation systems around the world
Sustainable irrigation practices
How irrigation contributes to increased agricultural yields

Introduction to Irrigation Techniques

Irrigation is the artificial application of water to land to help grow crops. Throughout history, civilisations have developed various methods to bring water to their fields. Today, irrigation is vital for food security, with nearly 20% of the world's farmland being irrigated but producing 40% of the world's food.

Key Definitions:

Irrigation: The artificial application of water to land to assist in the production of crops.
Water table: The upper level of groundwater below which the soil is saturated with water.
Aquifer: An underground layer of water-bearing rock from which groundwater can be extracted.
Water efficiency: The ratio of water beneficially used by plants compared to the total water applied.

Major Irrigation Techniques

💧 Surface Irrigation

This is the oldest and most common form of irrigation where water flows over the soil surface by gravity. It includes:

Flood irrigation: Entire fields are flooded with water
Basin irrigation: Fields divided into basins with level surfaces
Furrow irrigation: Water flows down small trenches between crop rows

Efficiency: 40-60% water use efficiency

Advantages: Low technology requirements, low energy costs

Disadvantages: High water wastage, potential for waterlogging and salinisation

💦 Sprinkler Irrigation

Water is distributed through a system of pipes and sprayed onto crops through sprinkler heads that simulate rainfall.

Types:

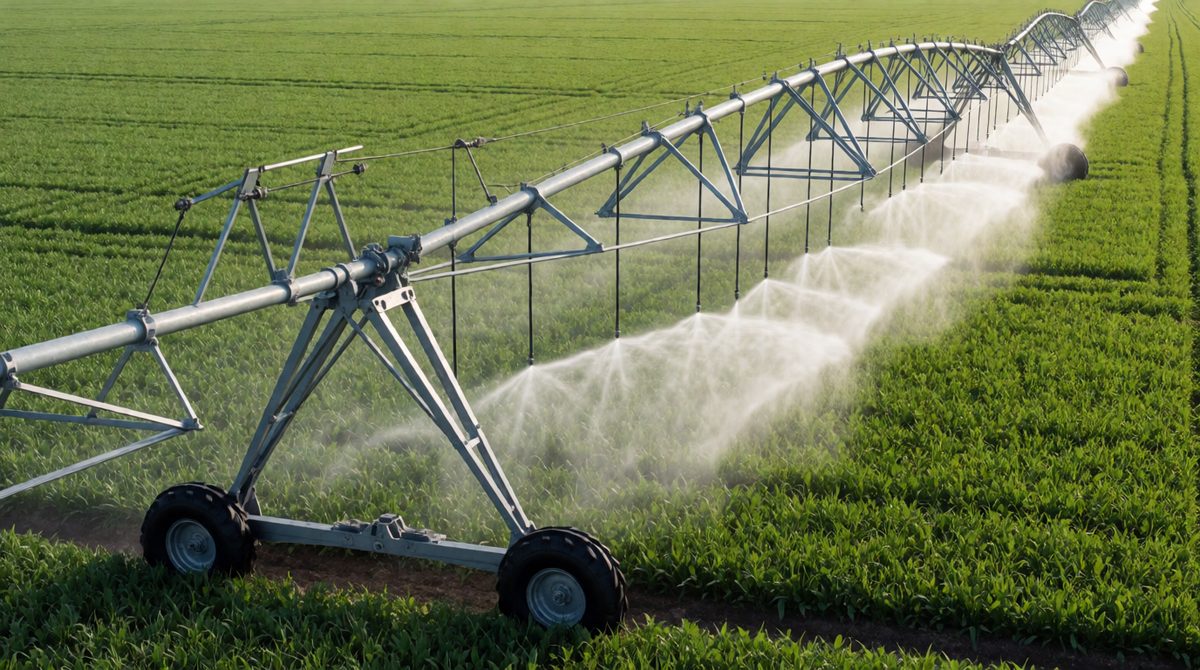

Centre pivot systems (rotating around a central pivot)
Lateral move systems (moving in straight lines)
Fixed sprinkler systems

Efficiency: 60-75% water use efficiency

Advantages: More controlled application, suitable for uneven terrain

Disadvantages: High energy costs, water loss through evaporation and wind drift

🔌 Drip/Micro Irrigation

Water is delivered directly to the plant's root zone through a network of valves, pipes, tubing and emitters.

Efficiency: 90-95% water use efficiency

Advantages: Highest water efficiency, reduced weed growth, can work with saline water

Disadvantages: High initial cost, requires technical knowledge, potential for clogging

🌎 Subsurface Irrigation

Water is applied below the soil surface, either through buried drip tape or by controlling the water table.

Efficiency: 80-90% water use efficiency

Advantages: Minimal evaporation loss, reduced disease problems, fewer weeds

Disadvantages: Difficult to monitor, potential root intrusion, high installation costs

Environmental Impacts of Irrigation

While irrigation is essential for food production, it can have significant environmental impacts if not managed properly:

⚠ Salinisation

When irrigation water evaporates, it leaves behind salt that can build up in the soil, making it toxic to plants. Nearly 20% of irrigated land worldwide suffers from salinisation.

⚠ Waterlogging

Excessive irrigation can raise the water table, causing waterlogging that drowns plant roots and creates anaerobic soil conditions.

⚠ Water Depletion

Irrigation accounts for about 70% of global freshwater withdrawals, depleting aquifers and reducing river flows, which affects aquatic ecosystems.

Sustainable Irrigation Practices

To maximise yields while minimising environmental impact, farmers can adopt several sustainable irrigation practices:

Deficit irrigation: Deliberately applying less water than needed for maximum yield but optimising water productivity
Precision irrigation: Using soil moisture sensors and weather data to apply exactly the right amount of water
Rainwater harvesting: Collecting and storing rainwater for use during dry periods
Wastewater reuse: Treating and using wastewater for irrigation, conserving freshwater resources
Improved scheduling: Irrigating at optimal times (usually early morning or evening) to reduce evaporation

Case Study: Drip Irrigation in Israel

Israel has pioneered drip irrigation technology since the 1960s. Despite being 60% desert with limited water resources, Israel has become a major agricultural exporter. Their drip irrigation systems deliver water directly to plant roots, achieving up to 95% water use efficiency.

Key achievements:

Agricultural water use decreased by 20% between 1985-2015 while agricultural output increased 26-fold
Israel recycles 90% of its wastewater for agricultural use
Israeli farmers use computerised systems that integrate soil moisture sensors, weather forecasts and crop water requirements

This case demonstrates how advanced irrigation technology can dramatically increase yields while conserving water in arid regions.

Irrigation and Agricultural Yields

Irrigation significantly increases agricultural yields through several mechanisms:

🌾 Yield Benefits

Drought prevention: Crops receive water even during dry periods
Extended growing seasons: Farmers can grow crops outside natural rain periods
Multiple cropping: Allows for 2-3 harvests per year in some regions
Expanded crop options: Enables growing water-intensive but high-value crops
Consistent quality: Reliable water supply produces more uniform crops

📊 Yield Statistics

The impact of irrigation on crop yields is substantial:

Rice yields can increase by 100-400% with proper irrigation
Wheat yields typically increase 100-200%
Vegetable yields can increase by 150-300%
Irrigated land (20% of farmland) produces 40% of the world's food
In developing countries, irrigated farms are twice as productive as rain-fed farms

Case Study: The Indus Basin Irrigation System

The Indus Basin Irrigation System in Pakistan is one of the world's largest contiguous irrigation systems, covering over 14 million hectares.

Features:

Network of canals spanning 61,000 km
Supports 90% of Pakistan's food production
Predominantly uses surface irrigation methods

Challenges:

Low water efficiency (30-40%)
Severe salinisation affecting 4.5 million hectares
Declining groundwater levels due to overpumping

Improvements underway:

Canal lining to reduce seepage losses
Laser land levelling to improve surface irrigation efficiency
Introduction of drip irrigation for high-value crops

This case study highlights both the importance of irrigation for food security and the need to modernise traditional systems to address environmental challenges.

Future of Irrigation

The future of irrigation focuses on "more crop per drop" through technological innovation:

Smart irrigation: Using IoT sensors, weather data and AI to optimise water application
Solar-powered systems: Making irrigation more accessible in remote areas without electricity
Drought-resistant crops: Developing varieties that require less irrigation
Water markets: Creating economic incentives for efficient water use
Integrated water management: Coordinating irrigation with other water uses at watershed level

As climate change increases water scarcity and extreme weather events, efficient irrigation will become even more critical for global food security. The challenge will be balancing increased food production with sustainable water management.
