Introduction to River Erosion
Rivers are powerful agents of change that constantly shape our landscapes. As water flows from higher to lower ground, it wears away the land through erosion. River erosion shapes river channels, creates landforms and influences the overall development of river environments. There are four erosion processes: hydraulic action, abrasion, attrition and solution.
Key Definitions:
- Erosion: The wearing away and removal of rock, soil and other materials from the earth's surface.
- Hydraulic Action: The erosive force of moving water as it collides with and compresses against river banks and beds.
- Abrasion: The scraping and scouring of the river channel by sediment carried in the water.
- Attrition: The process where rocks and pebbles in the river collide with each other, becoming smaller and more rounded.
- Solution: The chemical process where soluble rocks dissolve in the river water.
Hydraulic Action: The Force of Water
๐ง The Basics of Hydraulic Action
Hydraulic action occurs when the force of moving water impacts against rock surfaces. As water flows, it exerts pressure on the river banks and bed. This pressure can force air into cracks and crevices in the rock. When the water recedes, the air expands rapidly, causing small pieces of rock to break off. Think of it like repeatedly squeezing a water pistol against a muddy bank - eventually, bits will start to come away!
โก The Power of Hydraulic Action
The force of hydraulic action can be surprisingly powerful. During floods or in fast-flowing sections of a river, water can exert enormous pressure on river banks. This pressure can dislodge loose material and even solid rock over time. The faster the water flows, the more powerful the hydraulic action becomes. This is why hydraulic action is often most effective during periods of high discharge, such as after heavy rainfall or during spring snowmelt.
The Mechanics of Hydraulic Action
When water flows against a rock surface, it creates both direct pressure and turbulence. This combination of forces works to erode material in several ways:
๐ Direct Impact
Water directly strikes the river bank or bed, applying force that can dislodge loose particles. This is especially effective where the flow is concentrated, such as on the outside of river bends.
๐ Compression and Expansion
Water forces air into cracks in rocks. When water levels fluctuate, this trapped air expands and contracts, gradually weakening the rock structure until pieces break off.
๐ Turbulence
Swirling water creates localised areas of high pressure that can pull material away from river banks and beds, especially in areas where the flow is disrupted by obstacles.
Factors Affecting Hydraulic Action
The effectiveness of hydraulic action varies depending on several key factors. Understanding these helps explain why some river sections experience more erosion than others.
๐ Velocity and Discharge
The speed of water flow (velocity) and the volume of water (discharge) directly affect the force of hydraulic action. Higher velocity and discharge mean more powerful erosion. This is why erosion is often most dramatic during flood events when both factors increase significantly. Rivers with steep gradients typically have higher velocities and therefore more powerful hydraulic action.
๐งฑ Rock Type and Structure
The resistance of the river bank and bed materials greatly influences how effective hydraulic action will be. Soft rocks like clay and shale erode more easily than hard rocks like granite. Similarly, rocks with many joints, bedding planes, or other weaknesses are more susceptible to hydraulic action as water can more easily penetrate these spaces.
Abrasion: The River's Sandpaper
Abrasion is one of the most powerful erosional processes in rivers. Imagine dragging sandpaper across wood - that's essentially what happens in a river. The water carries particles ranging from fine sand to large boulders. As these particles move along, they scrape against the river bed and banks, gradually wearing them away. The faster the river flows, the more powerful this scouring effect becomes, so abrasion is most effective during floods when the river has more energy.
๐ High Energy Zones
Abrasion is most effective in areas of fast flow, such as rapids and waterfalls, where the water has more energy to move larger particles.
💥 Bedload Impact
The larger particles that bounce or roll along the river bed (called bedload) cause the most abrasion, creating potholes and smoothing the channel.
๐ Turbulent Flow
In areas of turbulent flow, particles swirl around, increasing their erosive power and creating distinctive scour marks in the river bed.
Attrition: The Rock Tumbler
Attrition might seem less dramatic than other erosion types, but it plays a crucial role in shaping the sediment the river carries. Unlike abrasion, attrition wears down the load itself rather than the bed and banks.
The Journey of a Pebble
When a jagged rock first enters a river (perhaps falling from a cliff or eroded from the bank), it begins a transformative journey. Through attrition, its sharp edges and corners are gradually knocked off as it collides with other rocks. Over time, these collisions transform angular rocks into smooth, rounded pebbles. That's why river stones are typically rounded!
๐ Size Reduction
Attrition gradually reduces the size of rocks and pebbles. A boulder that enters the upper course of a river may be reduced to a small pebble by the time it reaches the lower course.
๐ Sorting Effect
Attrition contributes to the sorting of sediment along a river's course. Larger, more resistant rocks travel shorter distances, while smaller, more processed sediments can travel much further downstream.
Solution: The Chemical Eroder
Unlike the mechanical processes of hydraulic action, abrasion and attrition, solution is a chemical process that dissolves certain types of rock.
The Chemistry of Solution
When rainwater falls through the atmosphere, it absorbs carbon dioxide, creating a weak carbonic acid (HโCOโ). This slightly acidic water can dissolve certain minerals, particularly calcium carbonate found in limestone and chalk.
๐งช The Reaction
CaCOโ (limestone) + HโCOโ (carbonic acid) โ Ca(HCOโ)โ (calcium bicarbonate, which is soluble in water)
๐ก๏ธ Temperature Effects
Solution works faster in warmer waters, which is why tropical rivers in limestone areas can create extensive cave systems and sinkholes.
โฑ๏ธ Time Scale
Solution is typically slower than mechanical erosion but can create dramatic features over geological time, such as limestone pavements and underground river systems.
Case Study Focus: Solution in the Yorkshire Dales
The Yorkshire Dales in northern England showcase the power of solution erosion. Rivers like the Ribble and Wharfe flow through limestone landscapes, dissolving the rock to create features such as limestone pavements, potholes and extensive cave systems. Gaping Gill, one of Britain's largest known cave chambers, formed as acidic water dissolved the limestone, creating an underground chamber large enough to fit St Paul's Cathedral! The surface rivers sometimes disappear underground through "sinks" and reappear elsewhere as "risings," demonstrating how solution can fundamentally alter the river's course.
How the Erosion Processes Work Together
The four erosion processes rarely work alone. They operate side by side, and each one often makes the others more effective. A simple way to remember them is HAAS: Hydraulic action, Abrasion, Attrition and Solution.
๐จ Hydraulic Action and Abrasion
While hydraulic action uses the force of water alone, abrasion uses sediment carried by the river as a tool. Hydraulic action often loosens material that is then carried by the river and becomes a tool for abrasion. This creates a feedback loop where one erosion process enhances the other. Attrition then gradually wears these tools down into smaller, rounder pieces.
๐งช Hydraulic Action and Solution
Hydraulic action can expose fresh rock surfaces to water, making them more vulnerable to solution. This is particularly important in areas with soluble rocks like limestone, where hydraulic action can create openings that allow water to penetrate and dissolve the rock, potentially leading to the formation of caves and underground drainage systems.
Vertical and Lateral Erosion
Erosion can work in two directions. Vertical erosion cuts downwards into the river bed. It dominates in the upper course, where the gradient is steep and the river uses hydraulic action and abrasion with large bedload to deepen its channel. Lateral erosion wears sideways into the banks. It becomes more important in the middle and lower courses, where faster water on the outside of bends erodes the banks and widens the valley.
These processes create the landforms you will study later in this topic, starting with Waterfall Formation and Characteristics, V-shaped Valleys, Interlocking Spurs and Potholes and Meander Formation and Features.
Why River Erosion Matters to People

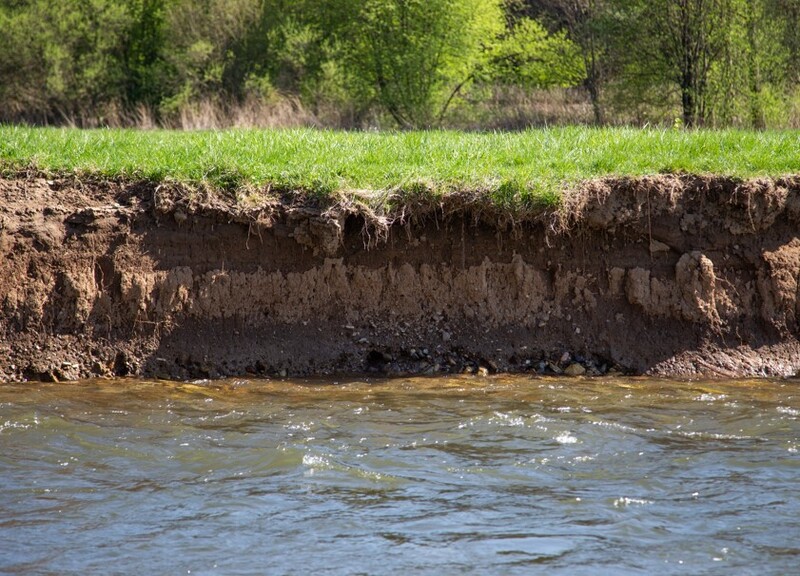

Hydraulic action and abrasion can threaten riverside structures and land through bank erosion. Engineers and environmental managers use various techniques to reduce the impact:
๐งฑ Hard Engineering
Concrete walls, riprap (large stones) and gabions (wire cages filled with rocks) can be used to protect banks from erosion. These provide direct physical barriers against the force of water.
๐ฑ Soft Engineering
Planting trees and vegetation along riverbanks helps reduce erosion by stabilising the soil with root systems and reducing flow velocity near the banks.
๐ River Restoration
Some management approaches now work with natural processes rather than against them, creating space for rivers to erode in some areas while protecting critical infrastructure in others.
Real-World Application: The River Skerne Restoration Project
The River Skerne in Darlington, UK, underwent a significant restoration project in the 1990s. Previously, the river had been straightened and confined between concrete banks to control flooding. This increased water velocity and hydraulic action, causing problems downstream. The restoration project removed concrete channels and reintroduced meanders, which reduced flow velocity and the power of hydraulic action. Vegetation was planted along the banks to provide natural protection. This project demonstrates how understanding erosion can inform river management approaches that work with natural processes rather than against them.
As climate change potentially leads to more extreme rainfall events in many regions, higher discharges may increase the power of erosion in some river systems. This makes understanding these processes even more important for future river management and planning.
Summary
๐ Key Takeaways
River erosion happens through four processes. Hydraulic action is the force of water itself, working by direct impact, compression and expansion of air in cracks, and turbulence. Abrasion is the load scraping the bed and banks. Attrition is the load knocking against itself, becoming smaller and rounder. Solution is the chemical dissolving of rocks such as limestone. Erosion is most powerful when velocity and discharge are high and the rock is weak. Rivers erode vertically in the upper course and laterally further downstream. The material they erode is then carried away, as you will see in River Transportation and Deposition.
๐ Exam Tip
Learn all four erosion processes by their correct names and make sure you can clearly distinguish them. A common mistake is mixing up abrasion (the load wearing away the bed and banks) with attrition (the load wearing itself down). Be prepared to explain how velocity, discharge and rock type affect the rate of erosion, and link each process to the landforms it helps create.
