lessonTitle: Cross-sections and Transects
Maps are brilliant for showing us what the world looks like from above, but sometimes we need to see what's happening below the surface or along a specific path. That's where cross-sections and transects come in! These cartographic tools help geographers visualise and understand the shape of the land, vegetation patterns and other geographical features in a different dimension.
Key Definitions:
Cross-sections show us what the land would look like if we could slice through it vertically, like cutting through a cake. They help us understand the shape and steepness of hills, valleys and other landforms that might not be obvious from a flat map view.
Transects are similar but often include more information about what's happening along that line - like changes in vegetation, soil types, or human settlements. They're like taking a walk along a straight line and recording everything you see.
Before we can create a cross-section, we need to understand contour lines. These are the key to translating a flat map into a 3D representation!
Contour lines connect points of equal height above sea level. Here's what they tell us:
Close contours = steep slope
Widely spaced contours = gentle slope
V-shapes pointing uphill = valleys
Circular closed contours = hills or depressions
Numbers on contours show height
Usually in metres above sea level
Creating a cross-section from a contour map involves a few simple steps. Think of it as transferring the ups and downs of the land from a bird's-eye view to a side view.
In real life, most landscapes are much wider than they are tall. To make the relief features easier to see, geographers often use vertical exaggeration - making the vertical scale larger than the horizontal scale. A common ratio might be 5:1 or 10:1, meaning heights are shown 5 or 10 times larger than they would be in real life.
Once you've created a cross-section, you can use it to identify and analyse different landforms and geographical features.
Appear as U-shaped or V-shaped dips in the cross-section. V-shaped valleys often indicate river erosion, while U-shaped valleys may suggest past glaciation.
Show up as peaks or humps. The steepness of the slopes can tell you about processes like erosion and weathering.
Appear as flat or gently sloping areas at higher elevations, often with steep sides dropping to lower ground.
While cross-sections focus on relief, transects can show much more about how geography changes across a landscape.
Show how plant communities change across an area. For example, how vegetation changes from the coast inland, or from lowlands to highlands. These are particularly useful in ecosystem studies.
Illustrate how land use, building density, or socio-economic factors change from the city centre to the suburbs and rural fringe. These help us understand urban patterns and processes.
Coastal transects are widely used to study beach profiles and coastal processes. By taking regular transects from the sea to the land, geographers can monitor changes in beach shape, identify erosion hotspots and track the impact of coastal management schemes. In Dorset, UK, regular beach transects along Chesil Beach help scientists understand how this unique 18-mile shingle barrier responds to storms and changing sea levels.
Cross-sections and transects aren't just for exams - they're essential tools used by real geographers and environmental scientists every day!

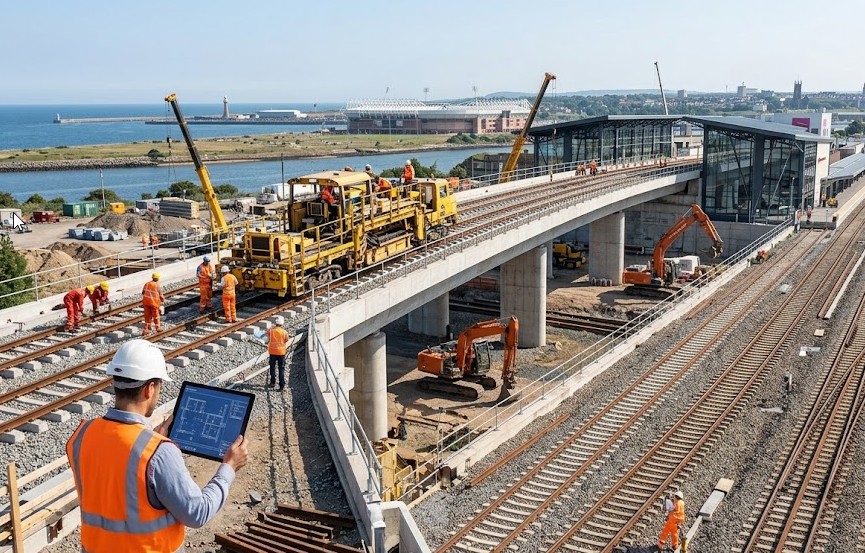

Engineers use cross-sections when planning roads, railways and tunnels to understand the terrain they'll be working with. This helps them calculate how much earth needs to be moved and identify potential hazards.
Conservation scientists use transects to monitor biodiversity and ecosystem health. By recording species along transect lines, they can track changes over time and assess the impact of management strategies.
When creating and interpreting cross-sections and transects, watch out for these common pitfalls:
For your iGCSE Geography exam, you might be asked to:
Practice drawing cross-sections from contour maps. Make sure you can accurately transfer heights and distances and remember to label your axes clearly.
Be prepared to identify and explain landforms shown in cross-sections, such as valleys, ridges and escarpments. Think about the processes that might have formed them.
Cross-sections and transects are tools to help us understand the 3D world from 2D maps. They're like translators between the flat paper and the real landscape. The more you practice creating and interpreting them, the better you'll understand the geographical features they represent!
