What you'll learn this session

Study time: 30 minutes

  • What isoline maps are and why they're important in geography
  • How to read and interpret different types of isoline maps
  • Understanding contour lines, isobars, isotherms and other common isolines
  • How to identify landforms and patterns using isoline maps
  • Practical skills for creating simple isoline maps
  • Real-world applications of isoline mapping

Introduction to Isoline Maps

Isoline maps are some of the most useful tools in a geographer's toolkit. They help us visualise invisible patterns across landscapes, weather systems and other geographical phenomena. But what exactly are they?

Key Definitions:

  • Isoline: A line on a map connecting points of equal value (e.g., height, temperature, pressure).
  • Contour line: A type of isoline showing equal height or elevation above sea level.
  • Isobar: An isoline connecting points of equal atmospheric pressure.
  • Isotherm: An isoline connecting points of equal temperature.
  • Interval: The difference in value between consecutive isolines on a map.

🗺 What Makes Isoline Maps Special?

Isoline maps transform numbers into visual patterns. Instead of seeing a list of temperature readings or elevation measurements, isolines show us the shape of these invisible features. They turn data into landscapes we can "see" with our eyes!

📊 How Isolines Work

Isolines work by connecting points with the same value. The closer together the lines, the steeper the gradient or rate of change. Widely spaced lines show gradual change, while tightly packed lines indicate rapid change in the measured value.

Types of Isoline Maps

Let's explore the most common types of isoline maps you'll encounter in geography:

Contour Maps (Topographic Maps)

Contour maps are probably the most familiar type of isoline map. They show the shape and elevation of land using contour lines.

⛰ Reading Contour Lines

Each contour line connects points of equal height above sea level. The contour interval (usually printed on the map) tells you the vertical distance between lines. For example, if the interval is 10m, then moving from one line to the next means a 10m change in elevation.

Key features to look for:

  • Close contours: Steep slopes
  • Widely spaced contours: Gentle slopes
  • Concentric circles: Hills (high point) or depressions (low point)
  • V-shaped contours: Valleys (V points upstream)
  • Ridge lines: Contours form an upside-down V

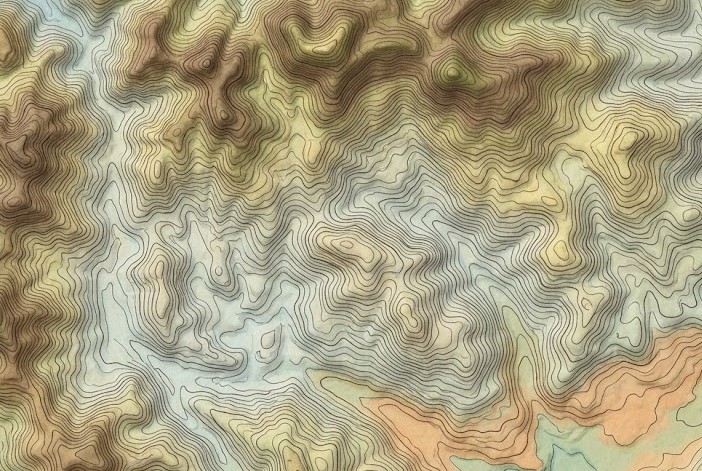

📏 Contour Map Example

Imagine a hill with contour lines at 10m intervals:

The bottom contour might be 100m, followed by 110m, 120m, etc. The summit might be marked 150m. The closer together these lines appear, the steeper the hill. If the lines are far apart, the slope is gentle.

When contour lines cross a river valley, they form a V-shape pointing upstream. This is because rivers erode valleys, creating this distinctive pattern.

Weather Maps

Weather maps use several types of isolines to show atmospheric conditions:

🌡 Isobars

Connect points of equal atmospheric pressure. Closely packed isobars indicate strong winds. They help meteorologists identify high and low pressure systems, which determine our weather.

🌤 Isotherms

Connect points of equal temperature. They show how temperature varies across regions and help identify warm and cold fronts. Often shown in different colours for easy identification.

🌧 Isohyets

Connect points of equal rainfall. These help identify wet and dry regions and are crucial for understanding climate patterns, agriculture potential and flood risks.

Other Important Isoline Maps

Geography uses many other specialised isoline maps:

🚗 Isochrones

These show travel time from a central point. For example, a map might show how far you can travel from a city centre in 10, 20, or 30 minutes by car or public transport. They're useful for transport planning and accessibility studies.

🌍 Isopleth Maps

These show variations in data like population density, GDP, or pollution levels. Unlike other isolines that connect points of actual measurements, isopleths often show calculated or averaged values across regions.

How to Read Isoline Maps

Reading isoline maps is a skill that improves with practice. Here are some tips:

🔍 Step-by-Step Approach

  1. Check what the isolines represent (height, temperature, etc.)
  2. Find the interval between lines (e.g., 10m, 5°C)
  3. Identify the highest and lowest values
  4. Look for patterns: gradients, clusters, anomalies
  5. Note where lines are close together (steep gradient) or far apart (gentle gradient)
  6. Identify any special features (hills, valleys, weather fronts)

⚠ Common Mistakes to Avoid

  • Forgetting to check the interval between lines
  • Misinterpreting contour patterns (confusing hills with depressions)
  • Ignoring the scale of the map
  • Not checking if values increase or decrease outward
  • Missing important labels or annotations

Creating Simple Isoline Maps

While professional maps are created using sophisticated software, understanding the basic process helps you interpret maps better:

📝 Manual Method

  1. Start with data points on a map (e.g., temperature readings at weather stations)
  2. Decide on your interval (e.g., every 5°C)
  3. Estimate where lines of equal value should pass between data points
  4. Draw smooth curves connecting points of equal value
  5. Label each line with its value

💻 Digital Methods

Modern geographers use Geographic Information Systems (GIS) to create isoline maps. Software like QGIS (free) or ArcGIS can automatically generate isolines from data points. These programs use algorithms to interpolate between known values and create smooth, accurate lines.

Case Study Focus: Using Contour Maps for Hiking

The Lake District National Park in England is famous for its beautiful mountains and lakes. Hikers planning to climb Scafell Pike (England's highest mountain at 978m) use contour maps to:

  • Plan their route by identifying the easiest paths (where contours are widely spaced)
  • Avoid dangerous steep sections (where contours are very close together)
  • Locate features like streams (V-shaped contours) and ridges
  • Calculate how much climbing they'll need to do
  • Estimate hiking time based on distance and elevation change

Experienced hikers know that closely packed contours mean they'll need to use their hands to climb, while widely spaced contours indicate easier walking terrain.

Practical Applications of Isoline Maps

Isoline maps aren't just for exams - they have countless real-world uses:

🏠 Urban Planning

City planners use contour maps to decide where to build, how to manage drainage and to plan road gradients. Flood risk maps (using isolines) help determine safe areas for development.

🌎 Climate Science

Scientists track climate change using isotherm maps, showing how temperature patterns shift over time. These maps help predict future climate scenarios and plan adaptation strategies.

💰 Business

Companies use isochrone maps to decide where to locate new stores or services, ensuring they're within a certain travel time for the maximum number of customers.

Exam Tips for Isoline Maps

In your iGCSE Geography exam, you might be asked to:

✍ Describe Patterns

Practice describing what you see on isoline maps using proper geographical terminology:

  • "The contour lines are closely spaced on the eastern slope, indicating a steep gradient."
  • "Isotherms bend southward over the ocean, showing the cooling effect of the current."
  • "Isobars form concentric circles around the low-pressure system."

💡 Explain Patterns

Go beyond description to explain why patterns exist:

  • "The V-shaped contours indicate a river valley formed by erosion."
  • "Isotherms run parallel to the coast because the ocean moderates temperatures."
  • "Isohyets show decreasing rainfall moving east due to the rain shadow effect."

Remember, isoline maps tell stories about our world. With practice, you'll learn to read these stories and understand the geographical processes that shape our planet!
