Unlock This CourseThe ocean holds vast reserves of oil and natural gas beneath its floor. Marine oil extraction involves drilling deep into the seabed to access these fossil fuel deposits. This process has become increasingly important as land-based oil reserves become harder to find and more expensive to extract. Today, about 30% of the world's oil comes from offshore drilling operations.
Oil extraction and transportation in marine environments presents unique challenges and risks. The harsh ocean conditions, deep waters and distance from shore make these operations complex and potentially dangerous for marine ecosystems.
Key Definitions:
Different water depths require different types of platforms. Fixed platforms are used in shallow waters up to 150 metres deep, whilst floating platforms can operate in waters over 3,000 metres deep. Semi-submersible rigs float on the surface but are partially submerged for stability.
Marine oil extraction uses several sophisticated techniques depending on water depth, weather conditions and the location of oil reserves. The process begins with seismic surveys to locate potential oil deposits beneath the seabed.
Before drilling begins, companies use sound waves to create detailed maps of the ocean floor and underlying rock formations. Ships tow arrays of air guns that create controlled explosions. The sound waves bounce back from different rock layers, revealing where oil might be trapped. This process can disturb marine life, particularly whales and dolphins that rely on sound for communication and navigation.
Uses fixed platforms anchored to the seabed. Common in the North Sea and Gulf of Mexico in waters less than 150 metres deep.
Employs floating platforms that can drill in waters over 1,500 metres deep. More technically challenging and expensive.
The most advanced drilling in waters deeper than 1,500 metres, requiring specialised equipment and highly trained crews.
Once a suitable location is identified, the actual drilling process begins. A drill bit attached to a long string of steel pipes cuts through the seabed. As drilling progresses, steel casing is inserted to prevent the hole from collapsing and to protect groundwater from contamination.
During drilling, a special fluid called drilling mud is pumped down the drill pipe. This mud serves multiple purposes: it cools the drill bit, carries rock cuttings to the surface and most importantly, provides pressure to prevent oil and gas from rushing up the well uncontrolled. Multiple safety systems, including blowout preventers, are installed to shut off the well in case of emergency.
The Deepwater Horizon oil spill in the Gulf of Mexico was one of the worst environmental disasters in history. A blowout on the drilling platform killed 11 workers and released approximately 4.9 million barrels of oil into the ocean over 87 days. The spill affected over 1,000 miles of coastline, killed thousands of marine animals and cost BP over $65 billion in cleanup and compensation. This disaster highlighted the risks of deep-water drilling and led to stricter safety regulations.
Once extracted, crude oil must be transported from offshore platforms to refineries on land. This transportation presents its own set of environmental challenges and risks to marine ecosystems.
Many offshore oil platforms connect to underwater pipelines that carry oil directly to shore. These pipelines are buried beneath the seabed or laid on the ocean floor. Whilst generally safer than ship transport, pipeline leaks can be difficult to detect and repair, potentially causing long-term environmental damage.

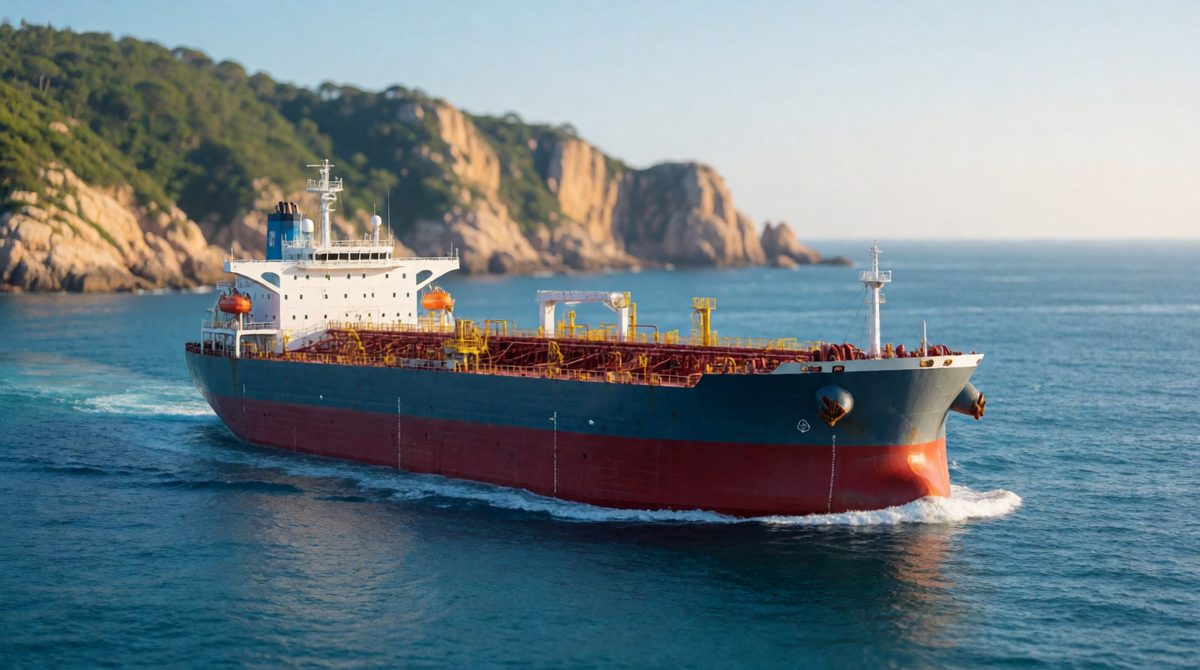

Large oil tankers transport crude oil across oceans. Modern tankers have double hulls to reduce spill risk, but accidents can still occur during storms or collisions. The largest tankers can carry over 2 million barrels of oil.
Marine oil extraction and transportation pose significant risks to ocean ecosystems. These impacts can be immediate and dramatic, like oil spills, or long-term and subtle, like chronic pollution from normal operations.
Oil spills coat seabirds' feathers, destroying their insulation and waterproofing. Marine mammals may inhale toxic fumes or ingest oil while feeding. Fish and shellfish can absorb oil compounds into their tissues, making them unsafe for human consumption and disrupting the food chain. Even small amounts of oil can interfere with fish reproduction and development.
Oil destroys the waterproofing of feathers, causing birds to lose body heat and drown. Cleaning efforts can save some birds, but many die from stress or toxin exposure.
Whales, dolphins and seals can inhale toxic vapours or get oil in their eyes and blowholes. Oil can also contaminate their food sources.
Oil can kill fish eggs and larvae, whilst adult fish may absorb toxins that make them unsafe to eat. Shellfish filter oil from water, concentrating toxins in their tissues.
When oil spills occur, rapid response is crucial to minimise environmental damage. Various cleanup methods are used depending on the location, weather conditions and type of oil spilled.
Mechanical cleanup involves using booms to contain oil and skimmers to remove it from the water surface. Chemical dispersants break oil into smaller droplets that bacteria can more easily consume, but these chemicals can also be toxic to marine life. Bioremediation uses naturally occurring bacteria to break down oil, whilst burning removes oil from the surface but creates air pollution.
The Exxon Valdez tanker ran aground in Prince William Sound, Alaska, spilling 11 million gallons of crude oil. The spill killed an estimated 250,000 seabirds, 2,800 sea otters and 300 harbour seals. Some species, like the Pacific herring, never fully recovered. The disaster led to the Oil Pollution Act of 1990, requiring double-hull tankers and better crew training. Cleanup efforts cost over $2 billion and took four summers to complete.
The oil industry operates under strict international and national regulations designed to prevent accidents and minimise environmental impact. These regulations cover everything from equipment standards to crew training requirements.
The International Maritime Organisation (IMO) sets global standards for oil tanker construction and operation. The MARPOL convention restricts oil discharges from ships, whilst the International Safety Management Code requires companies to establish safety management systems. Many countries have additional regulations specific to their waters.
Modern oil platforms use advanced safety systems including automatic shutdown valves, fire suppression systems and escape pods for emergencies. Satellite monitoring tracks ship movements and can detect potential spills quickly.
As the world transitions towards renewable energy, the future of marine oil extraction remains uncertain. However, current global energy demands mean offshore drilling will likely continue for decades. The industry is investing in cleaner technologies and better safety systems to reduce environmental risks.
New technologies include remotely operated underwater vehicles (ROVs) for inspection and maintenance, advanced computer modelling to predict equipment failures and improved materials that resist corrosion in harsh marine environments. Some companies are exploring carbon capture and storage, where CO2 is injected into depleted oil wells beneath the seabed.
