Structure of the Earth » The Earth's Core Structure

What you'll learn this session

Study time: 30 minutes

  • Understand the Earth's internal structure and its four main layers
  • Learn about the composition and properties of the inner and outer core
  • Discover how scientists study the Earth's interior using seismic waves
  • Explore the role of the core in creating Earth's magnetic field
  • Examine how the core affects marine environments and ocean systems
  • Understand the relationship between core dynamics and plate tectonics

Introduction to Earth's Core Structure

Deep beneath our feet lies one of the most fascinating and extreme environments in our solar system - the Earth's core. This incredibly hot, dense region at the centre of our planet plays a crucial role in shaping everything from our magnetic field to the movement of tectonic plates that affect our oceans. Understanding the core's structure is essential for marine scientists because it influences ocean currents, sea floor spreading and even the protection of marine life from harmful solar radiation.

Key Definitions:

  • Core: The innermost layer of the Earth, composed primarily of iron and nickel.
  • Seismic waves: Energy waves that travel through the Earth, created by earthquakes and used to study internal structure.
  • Magnetic field: The invisible force field surrounding Earth that protects us from solar radiation.
  • Convection: The movement of heated material in circular patterns, like stirring soup.

🌍 Earth's Layer Overview

The Earth consists of four main layers: the crust (where we live), the mantle (hot rock), the outer core (liquid metal) and the inner core (solid metal). Think of it like a hard-boiled egg - the shell is the crust, the white is the mantle and the yolk represents both parts of the core!

The Structure of Earth's Core

The Earth's core is actually made up of two distinct parts, each with very different properties despite being made of similar materials. Scientists have discovered this through careful study of earthquake waves that travel through our planet.

The Outer Core

The outer core extends from about 2,900 kilometres to 5,150 kilometres below the Earth's surface. This region is absolutely crucial for life on Earth and here's why:

🔥 Temperature

Temperatures range from 4,000°C to 6,000°C - that's as hot as the Sun's surface! This extreme heat keeps the iron and nickel in a liquid state.

Composition

Made up of about 80% iron and 20% nickel, with small amounts of other elements like sulphur and oxygen dissolved in the mix.

🅄 Movement

The liquid metal constantly moves in swirling patterns due to convection currents, creating our planet's magnetic field through a process called the geodynamo.

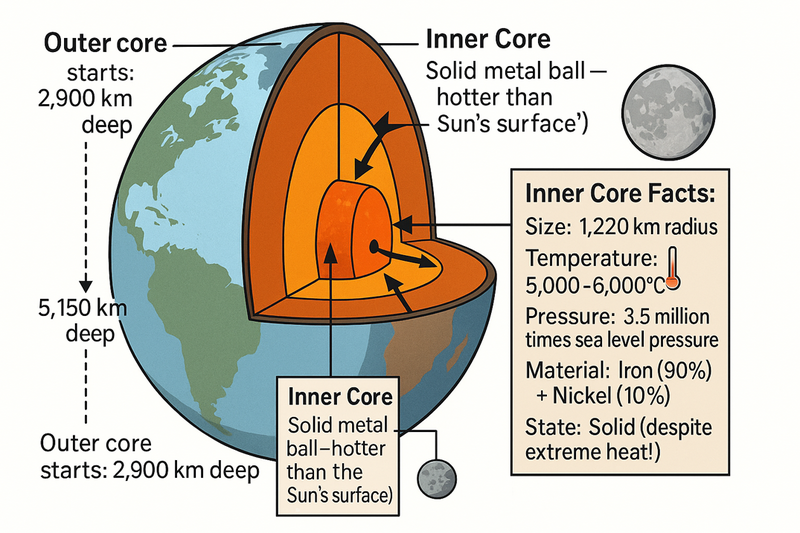

The Inner Core

At the very centre of our planet lies the inner core, a solid ball of metal that's roughly the size of the Moon. Despite being even hotter than the outer core, it remains solid due to the immense pressure - imagine the weight of the entire planet pressing down on this central region!

The inner core has some remarkable properties:

  • Size: About 1,220 kilometres in radius
  • Temperature: Around 5,000-6,000°C
  • Pressure: Over 3.5 million times atmospheric pressure at sea level
  • Composition: Primarily iron with about 10% nickel

Amazing Core Facts

The inner core rotates slightly faster than the rest of the Earth - it completes an extra rotation about every 400 years! Scientists also believe the inner core is growing very slowly as the outer core gradually cools and solidifies, adding about 1 millimetre to its radius every million years.

How Scientists Study the Earth's Core

Since we can't dig down to the core (the deepest we've ever drilled is only about 12 kilometres), scientists use clever indirect methods to study the Earth's interior. The main tool is seismology - the study of earthquake waves.

Seismic Wave Investigation

When earthquakes occur, they create different types of waves that travel through the Earth at different speeds and in different ways:

🌊 P-waves (Primary waves)

These waves can travel through both solid and liquid materials. They slow down when they hit the liquid outer core, which is how scientists first discovered that part of the core was liquid.

🌋 S-waves (Secondary waves)

These waves can only travel through solid materials. They completely stop when they hit the liquid outer core, creating a "shadow zone" on the opposite side of the Earth from an earthquake.

By studying how these waves behave as they travel through the Earth, scientists can work out what materials they're passing through and whether those materials are solid or liquid.

The Core's Role in Marine Science

You might wonder why marine scientists need to know about the Earth's core. The answer is that the core has several important effects on ocean systems and marine life:

Magnetic Field Protection

The swirling liquid iron in the outer core creates Earth's magnetic field, which acts like an invisible shield protecting our planet from harmful solar radiation. Without this protection, the solar wind would strip away our atmosphere and oceans, making Earth uninhabitable for marine life.

🐡 Marine Navigation

Many marine animals, including sea turtles, whales and some fish, use Earth's magnetic field for navigation during long migrations across the oceans.

🌊 Atmospheric Protection

The magnetic field prevents solar particles from stripping away our atmosphere, maintaining the conditions necessary for liquid water and marine ecosystems.

Radiation Shielding

Harmful cosmic radiation is deflected by the magnetic field, protecting marine organisms from DNA damage that could affect entire food chains.

Plate Tectonics and Ocean Basins

Heat from the core drives convection in the mantle, which powers plate tectonics. This process is responsible for:

  • Creating new ocean floor at mid-ocean ridges
  • Forming ocean basins and underwater mountain ranges
  • Driving the movement of continents over geological time
  • Creating underwater volcanic activity that supports unique ecosystems

Case Study: Mid-Atlantic Ridge

The Mid-Atlantic Ridge is a perfect example of how core heat affects marine environments. This underwater mountain range runs down the middle of the Atlantic Ocean, created by heat from the core driving mantle convection. As new ocean floor forms here, it creates unique deep-sea ecosystems around hydrothermal vents, supporting life forms that exist nowhere else on Earth.

Core Dynamics and Ocean Circulation

The Earth's core also influences ocean circulation patterns through its effect on the planet's rotation and magnetic field variations. Changes in the core's behaviour can affect:

Geomagnetic Reversals

Throughout Earth's history, the magnetic field has occasionally flipped, with magnetic north becoming magnetic south. During these reversals, which can take thousands of years to complete, the magnetic field becomes weaker and more complex. This affects marine animals that rely on magnetic navigation and may influence ocean current patterns.

Day Length Variations

Changes in the core's rotation can slightly alter the length of Earth's days. While these changes are tiny (measured in milliseconds), they can affect tidal patterns and ocean circulation over long periods.

Future Research and Climate Connections

Scientists continue to study the Earth's core to better understand its role in climate and ocean systems. Current research focuses on:

  • How core dynamics might influence long-term climate patterns
  • The relationship between magnetic field strength and atmospheric retention
  • Predicting future magnetic field behaviour and its effects on marine navigation
  • Understanding how core heat affects global ocean circulation patterns

This research is becoming increasingly important as we try to understand all the factors that influence Earth's climate system and marine environments. The core might seem distant from the oceans, but it plays a fundamental role in making our blue planet the perfect home for marine life.
