What you'll learn this session

Study time: 30 minutes

  • Understand what surface run-off is and how it forms
  • Learn about different types of surface run-off processes
  • Explore factors that affect run-off rates and patterns
  • Examine the impact of human activities on surface run-off
  • Study real-world examples of run-off management
  • Understand the connection between run-off and water quality

๐Ÿ”’ Unlock Full Course Content

Sign up to access the complete lesson and track your progress!

Unlock This Course

Introduction to Surface Run-off Processes

Surface run-off is one of the most important parts of the water cycle that directly affects our daily lives. When rain falls or snow melts, not all of this water soaks into the ground. The water that flows over the land surface is called surface run-off and it plays a crucial role in shaping our landscape, filling our rivers and lakes and sometimes causing floods.

Understanding surface run-off is essential for marine science because this water eventually reaches our oceans, carrying with it nutrients, pollutants and sediments that affect marine ecosystems.

Key Definitions:

  • Surface Run-off: Water that flows over the ground surface when soil cannot absorb it fast enough.
  • Infiltration: The process by which water soaks into the soil.
  • Watershed: An area of land where all water drains to a common outlet.
  • Overland Flow: The movement of water over the land surface towards streams and rivers.

🌊 How Surface Run-off Forms

Surface run-off occurs when rainfall or snowmelt exceeds the soil's ability to absorb water. Think of it like pouring water on a sponge - at first, the sponge soaks up the water, but once it's saturated, the excess water runs off the surface.

Types of Surface Run-off

There are several different types of surface run-off, each with unique characteristics and impacts on the environment.

Horton Overland Flow

This type of run-off happens when rainfall intensity exceeds the soil's infiltration rate. It's most common in arid regions or areas with compacted soil. The water simply cannot penetrate the ground fast enough, so it flows over the surface.

🏜 Desert Areas

Hard, dry soil with low infiltration rates leads to rapid surface flow during rare but intense rainfall events.

🏙 Urban Areas

Concrete and tarmac prevent water absorption, creating immediate surface run-off even during light rain.

🚢 Compacted Farmland

Heavy machinery can compress soil, reducing its ability to absorb water and increasing run-off.

Saturation Overland Flow

This occurs when the soil becomes completely saturated with water, like a full sponge. Even light rainfall will then create surface run-off because there's simply no more room for water in the soil.

Case Study Focus: The Thames Catchment

The River Thames catchment covers 16,000 square kilometres and demonstrates how different land uses affect run-off patterns. Urban areas like London create rapid run-off, whilst rural areas upstream have slower, more sustained flow. During heavy rainfall, the combination can lead to flooding downstream, showing why understanding run-off processes is crucial for flood management.

Factors Affecting Surface Run-off

Several factors determine how much water becomes surface run-off versus soaking into the ground. Understanding these factors helps us predict and manage water flow.

Physical Factors

🏔 Slope and Topography

Steeper slopes create faster run-off with less time for water to infiltrate. Flat areas allow more time for absorption but may become waterlogged.

Soil Type and Permeability: Sandy soils absorb water quickly, whilst clay soils have low permeability and create more run-off. Rock type also matters - limestone allows water to seep through cracks, whilst granite creates more surface flow.

Vegetation Cover: Plants are nature's sponges. Their roots create channels for water to enter the soil and their leaves intercept rainfall, slowing its impact on the ground. Areas with dense vegetation typically have less surface run-off.

Climate and Weather Patterns: The intensity and duration of rainfall greatly affect run-off. A gentle, steady rain allows more infiltration than a sudden downpour. Frozen ground in winter cannot absorb water, leading to increased run-off during thaws.

Human Influences on Run-off

Human activities have dramatically altered natural run-off patterns, often with significant consequences for both terrestrial and marine environments.

🏢 Urbanisation

Cities replace natural surfaces with impermeable materials, increasing run-off volume and speed whilst reducing groundwater recharge.

🌿 Deforestation

Removing trees eliminates natural water retention, leading to increased erosion and faster run-off to waterways.

🚢 Agriculture

Ploughing can increase infiltration, but overgrazing and soil compaction from machinery can have the opposite effect.

Run-off and Water Quality

Surface run-off doesn't just transport water - it carries everything it encounters along the way. This has major implications for water quality in rivers, lakes and ultimately the marine environment.

Pollutant Transport

As water flows over surfaces, it picks up various materials and chemicals. In urban areas, this might include oil from roads, chemicals from gardens and litter. In agricultural areas, run-off can carry fertilisers, pesticides and animal waste.

Non-Point Source Pollution: Unlike pollution from a specific source like a factory pipe, run-off creates diffuse pollution that's harder to control. This makes it a significant challenge for water quality management.

Case Study Focus: Agricultural Run-off in East Anglia

East Anglia's intensive farming creates significant nutrient run-off, particularly nitrogen and phosphorus from fertilisers. This run-off flows into rivers and eventually reaches the North Sea, where it can cause algal blooms that deplete oxygen levels and harm marine life. Farmers are now using buffer strips of vegetation along waterways to reduce run-off and protect water quality.

Managing Surface Run-off

Understanding run-off processes allows us to develop strategies to manage water flow and protect both human communities and natural environments.

Natural Solutions

Working with natural processes often provides the most sustainable run-off management. Wetlands act as natural sponges, absorbing excess water during heavy rainfall and releasing it slowly. Forests and grasslands also help regulate water flow.

🌲 Green Infrastructure

Cities are increasingly using green roofs, permeable pavements and urban forests to reduce run-off whilst providing other benefits like improved air quality and wildlife habitat.

Engineering Solutions

Traditional engineering approaches include drainage systems, retention ponds and flood barriers. Whilst effective, these solutions require ongoing maintenance and can sometimes create problems elsewhere in the watershed.

Sustainable Drainage Systems (SuDS): Modern approaches combine natural and engineered solutions. Examples include swales (shallow channels), permeable car parks and constructed wetlands that manage run-off whilst providing environmental benefits.

Run-off and Marine Environments

All surface run-off eventually reaches the sea, making it a crucial link between terrestrial and marine ecosystems. The quality and quantity of this run-off directly affects coastal and ocean environments.

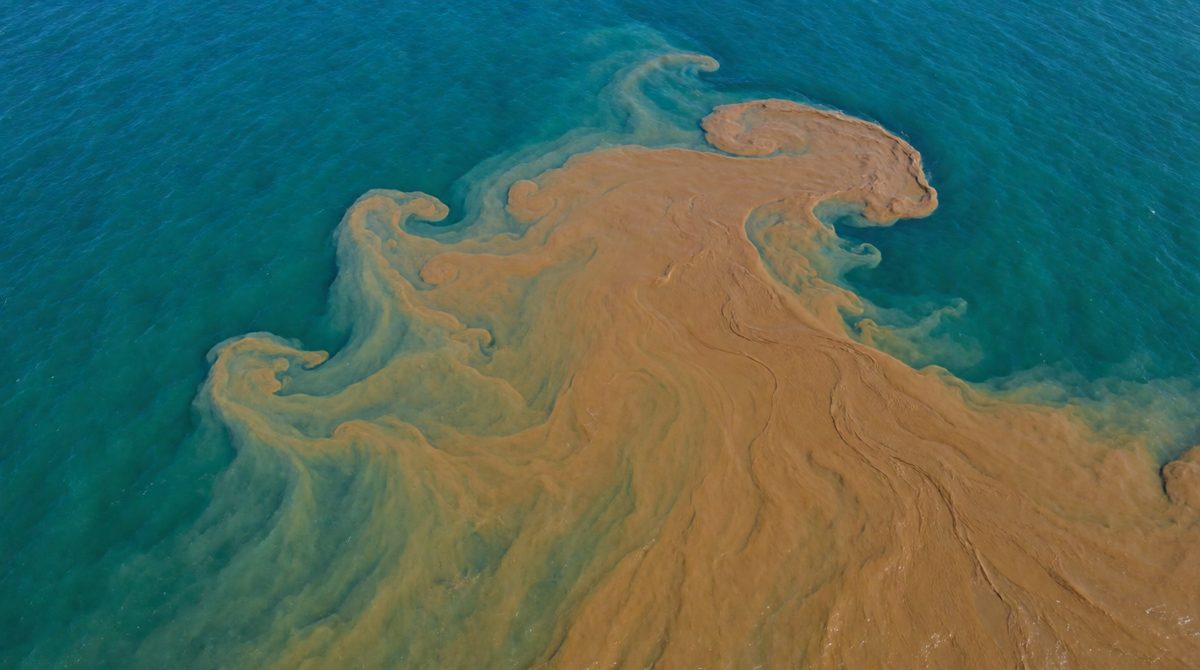

Sediment Transport

Run-off carries soil particles that can cloud coastal waters, affecting marine plants that need sunlight for photosynthesis. However, some sediment transport is natural and necessary for maintaining coastal features like beaches and salt marshes.

Nutrient Loading: Excess nutrients from run-off can cause eutrophication in coastal waters, leading to harmful algal blooms and dead zones where marine life cannot survive.

Case Study Focus: The Chesapeake Bay, USA

The Chesapeake Bay receives run-off from a watershed covering six states. Agricultural and urban run-off has created serious water quality problems, including algal blooms and oxygen depletion. A comprehensive restoration programme now focuses on reducing nutrient run-off through improved farming practices, urban green infrastructure and wetland restoration.

Climate Change and Run-off Patterns

Climate change is altering precipitation patterns worldwide, affecting surface run-off processes. More intense rainfall events can overwhelm natural and built drainage systems, whilst prolonged droughts can make soils less able to absorb water when rain finally arrives.

Adaptation Strategies

Communities are developing new approaches to manage changing run-off patterns. These include early warning systems for floods, improved drainage infrastructure and nature-based solutions that can adapt to varying conditions.

Understanding surface run-off processes is essential for managing our water resources, protecting communities from flooding and maintaining healthy marine ecosystems. As climate change continues to alter precipitation patterns, this knowledge becomes even more crucial for sustainable water management.
