Key Concepts of Sleep » Measuring Sleep: EEG, EMG, EOG

What you'll learn this session

Study time: 30 minutes

What EEG, EMG and EOG stand for and how they work
How scientists use these tools to measure different aspects of sleep
The different stages of sleep and how they appear on recordings
Why measuring sleep is important for understanding sleep disorders
Real-world applications in sleep research and medicine

🔒 Unlock Full Course Content

Unlock This Course

Introduction to Measuring Sleep

Have you ever wondered how scientists know what happens when we sleep? Since we can't exactly ask sleeping people what's going on in their brains, researchers use special machines to measure the electrical activity in our bodies. These measurements help us understand the different stages of sleep and diagnose sleep problems.

Sleep research relies on three main types of measurements, each focusing on different parts of the body. Think of it like having three different cameras watching a football match - each one shows you something different about what's happening.

Key Definitions:

Polysomnography: The complete sleep study that uses all three measurement types together.
Sleep stages: Different phases of sleep that our brains cycle through during the night.
Electrical activity: The tiny electrical signals that our brain and muscles produce naturally.

⚡ Why Measure Sleep?

Measuring sleep helps doctors diagnose problems like sleep apnoea, insomnia and narcolepsy. It also helps researchers understand how sleep affects our health, memory and daily performance.

EEG - Electroencephalography

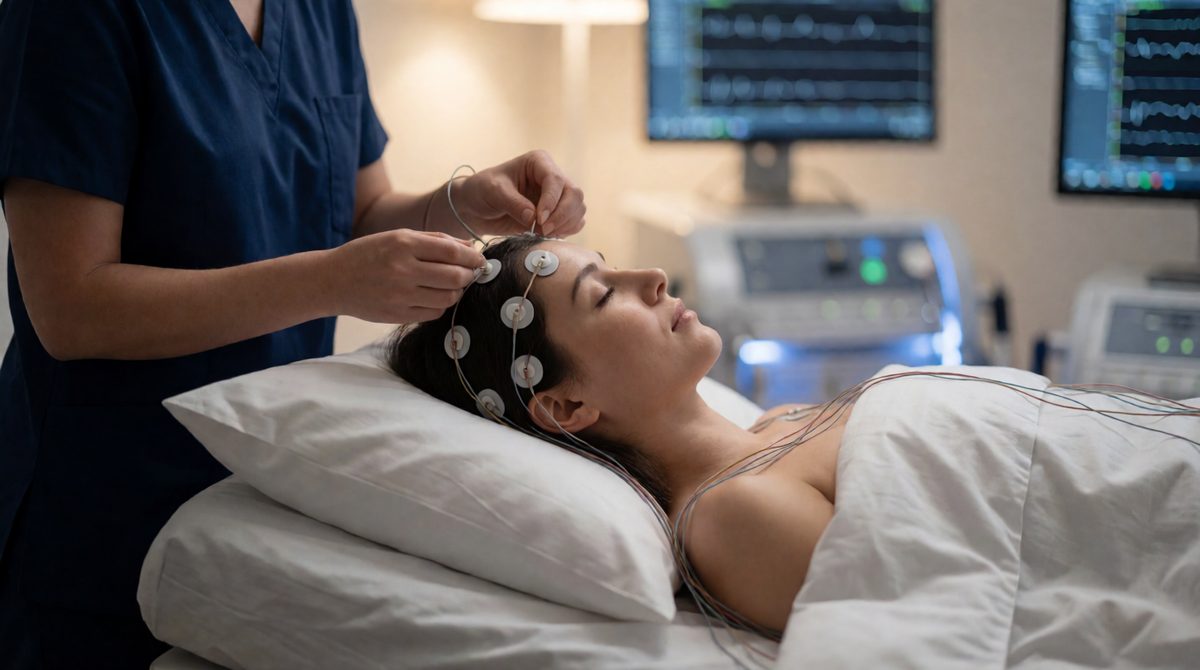

EEG measures the electrical activity in your brain using small sensors called electrodes placed on your scalp. Think of your brain as a busy city with millions of electrical messages being sent every second - the EEG captures these signals and turns them into wavy lines on a screen.
