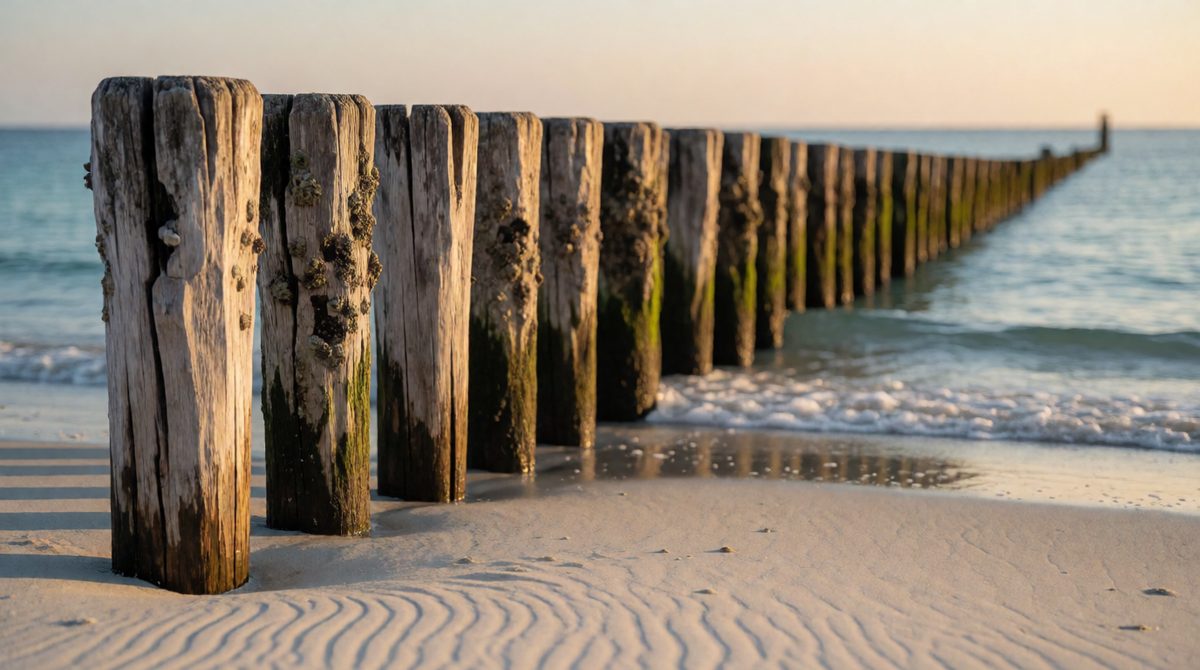

Unlock This CourseGroynes are one of the most common hard engineering solutions used to protect coastlines from erosion. You've probably seen them if you've ever walked along a beach - they're the wooden, concrete or rock barriers that stick out into the sea at right angles to the shore. But how exactly do they work and are they always the best solution?
Coastal erosion is a massive problem around the UK, with some areas losing several metres of coastline each year. This threatens homes, businesses, farmland and important infrastructure. Groynes offer one way to slow down this process by trapping sand and pebbles that would otherwise be washed away.
Key Definitions:
Groynes interrupt longshore drift - the natural process where waves carry sand and pebbles along the coast. When waves hit a groyne, they lose energy and drop their sediment load. This builds up the beach on one side of the groyne (usually the updrift side) whilst the downdrift side may experience increased erosion as it receives less sediment.
Not all groynes are the same. They come in different shapes, sizes and materials depending on local conditions, budget and environmental considerations.
The choice of material affects both cost and effectiveness. Each type has its own advantages and challenges.
Made from treated wooden planks or logs. Cheapest option but need regular maintenance. Common on many UK beaches. Last 10-25 years depending on conditions.
Built using large granite or limestone blocks. More expensive but very durable. Can last 50+ years. Often used in high-energy wave environments.
Pre-cast concrete sections or poured in place. Good durability and can be designed for specific wave conditions. Medium cost option.
The effectiveness of groynes depends heavily on their design. Engineers must consider wave energy, tidal range, sediment type and local geology when planning groyne systems.
Permeable groynes allow some water and sediment to pass through gaps. This reduces wave energy but allows some longshore drift to continue. Impermeable groynes block all sediment movement, creating a bigger difference in beach levels either side.
Individual groynes are rarely used alone. Instead, they're built in groups called groyne fields. The spacing between groynes is crucial - too close together wastes money, too far apart reduces effectiveness.
Groynes are typically spaced 1-3 times their length apart. So a 100-metre groyne might be part of a field where groynes are 100-300 metres apart. This ensures good sediment trapping without excessive costs.
Groynes offer several benefits that make them popular coastal defence options, especially for protecting beaches and seafront properties.
Relatively cheap to build compared to sea walls. Protect valuable coastal property and infrastructure. Support tourism by maintaining beaches.
Create wider, more stable beaches perfect for tourism. Provide sheltered areas for swimming and water sports. Easy to maintain existing beach activities.
Break up wave energy before it reaches the shore. Reduce erosion rates significantly. Work with natural processes rather than against them.
Despite their popularity, groynes aren't perfect solutions. They can create new problems whilst solving others and don't work well in all coastal environments.
The biggest problem with groynes is that they can increase erosion further along the coast. By trapping sediment, they starve downdrift beaches of sand and pebbles, potentially making erosion worse there. This can lead to conflicts between neighbouring communities.
Groynes face several other challenges that coastal managers must consider:
Mappleton provides an excellent example of both groyne success and problems. In 1991, two rock groynes were built to protect this small village from rapid cliff erosion. The groynes successfully protected Mappleton, but increased erosion rates at Cowden, 3km south. Cowden now loses about 2.5 metres of coastline per year - faster than before Mappleton's defences were built. This shows how coastal management decisions affect entire stretches of coastline, not just individual locations.
Groynes don't just affect coastal erosion - they also change marine and coastal ecosystems in various ways.
Rock groynes create artificial reefs that provide homes for marine life like barnacles, mussels and seaweed. These attract fish and create diverse underwater ecosystems. Many groynes become popular spots for fishing and rock pooling.
However, groynes can also disrupt natural coastal processes:
Modern coastal management rarely uses groynes alone. Instead, they're part of integrated coastal zone management that combines multiple approaches.
Bournemouth uses a combination of groynes, beach nourishment and cliff drainage to protect its valuable tourist beaches. The resort has over 40 timber groynes along its 7-mile seafront, regularly maintained and replaced. These work alongside artificial sand replenishment - adding 500,000 cubic metres of sand since 1988. This integrated approach maintains Bournemouth's £500 million annual tourism industry whilst protecting coastal properties.
The future of coastal management increasingly focuses on working with natural processes rather than fighting them. This includes:
Combining groynes with beach nourishment, dune restoration and cliff drainage. This creates more natural-looking defences that provide multiple benefits including wildlife habitat and recreation space.
Cost is always a major factor in coastal defence decisions. Groynes offer good value for money in many situations, but costs vary significantly.
Understanding the economics helps explain why groynes remain popular despite their limitations:
Compare this to sea walls (£5,000-15,000 per metre) or beach nourishment (£500-2,000 per metre but needs repeating every 5-10 years) and groynes often provide the best long-term value.
The East Anglian coast loses an estimated £15 million worth of agricultural land each year to erosion. Strategic groyne placement protecting key areas can cost £2-5 million but save £20-50 million in land and property values over 25 years. This makes groynes economically attractive despite their high upfront costs.
