Unlock This CourseWhen waves crash against our coastlines, they can cause serious damage to cliffs, beaches and coastal communities. Hard engineering solutions like gabions and riprap are designed to absorb wave energy and protect the shore from erosion. These methods use strong materials to create barriers that can withstand the power of the sea.
Both gabions and riprap are examples of hard engineering because they use artificial structures made from rock, concrete, or metal to defend against coastal erosion. Unlike soft engineering (like beach nourishment), these solutions create permanent physical barriers.
Key Definitions:
Gabions are like giant stone-filled baskets. The wire mesh holds rocks together whilst allowing water to flow through. When waves hit gabions, the water passes through the gaps between stones, reducing the wave's power. The flexible structure can move slightly with wave action, making it less likely to break than solid walls.

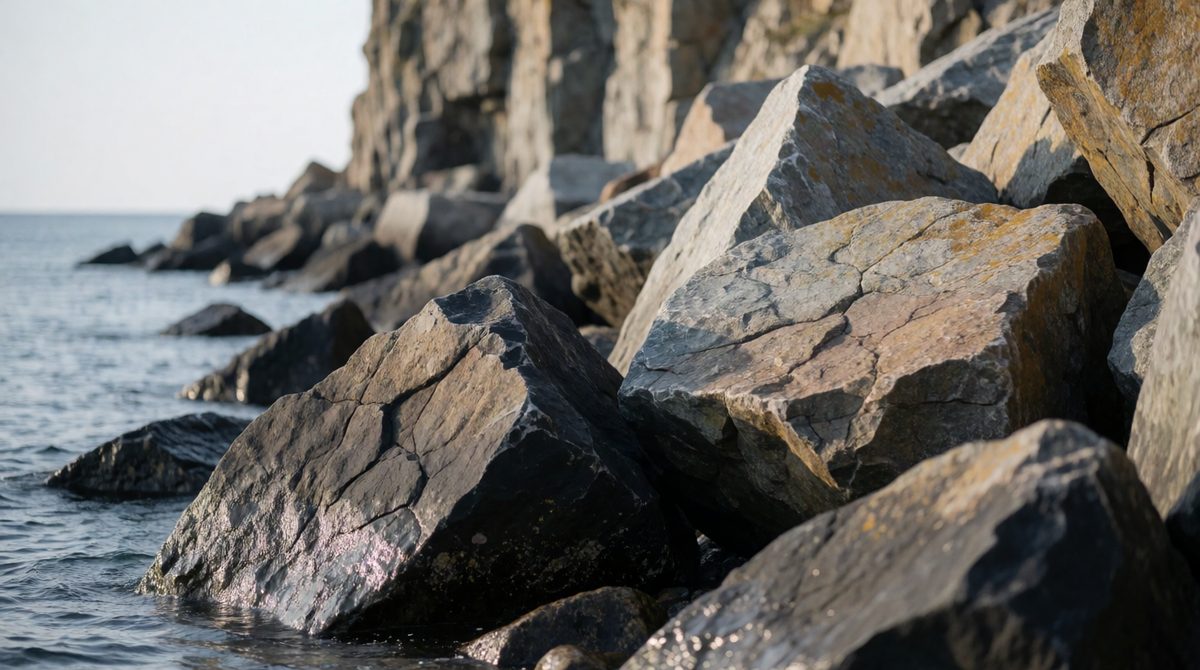

Riprap creates a rough, uneven surface that breaks up wave energy. Large rocks are carefully placed to interlock with each other, creating a stable barrier. The gaps between rocks allow water to drain away quickly, reducing the pressure behind the defence. The irregular surface scatters wave energy in different directions.
Both gabions and riprap require careful planning and specific materials to work effectively. The size, shape and placement of materials are crucial for creating successful coastal defences.
Gabions are built using galvanised steel wire mesh formed into rectangular baskets. These baskets are filled with locally sourced rocks, typically 100-200mm in diameter. The wire mesh is usually coated with plastic or zinc to prevent corrosion from salt water. Gabions can be stacked in layers and linked together to create larger structures.
Made from galvanised steel wire, twisted into hexagonal shapes. Must resist corrosion from salt water and remain flexible enough to move with wave action.
Local rocks or stones, usually granite or limestone. Must be hard enough to resist wave action and sized to fit properly within the mesh.
Baskets are assembled on-site, filled with rocks using machinery, then stacked and connected to form the defence structure.
Riprap uses much larger rocks or concrete blocks, typically weighing 1-5 tonnes each. These are placed by heavy machinery in carefully planned layers. The rocks must be large enough that waves cannot move them and they're often placed on a filter layer of smaller stones to prevent undermining.
After severe storms in 2014 destroyed the railway line at Dawlish, Network Rail used riprap as part of a £80 million sea wall reconstruction. Large granite blocks weighing up to 8 tonnes were placed along 415 metres of coastline. The riprap works alongside a concrete sea wall to absorb wave energy and protect the vital railway connection between London and Cornwall. The project was completed in 2016 and has successfully protected the railway during subsequent storms.
Like all coastal management strategies, gabions and riprap have both benefits and drawbacks that must be considered when planning coastal defences.
When choosing between gabions, riprap, or other coastal defences, planners must consider both environmental impacts and economic factors.
Both gabions and riprap can affect local ecosystems. Riprap often creates new habitats for marine life, as creatures like crabs and sea anemones can live in the gaps between rocks. However, both methods can disrupt natural sediment movement along the coast, potentially causing increased erosion in nearby areas.
The visual impact is also important. Gabions can look quite industrial, especially when new, though they often weather and blend in over time. Riprap generally looks more natural but can dominate smaller beaches and change the character of the coastline.
Pevensey Bay uses a combination of gabions and riprap to protect a 9km stretch of coastline. The gabions, installed in the 1980s, protect the lower-lying areas and have been successful in preventing flooding of the coastal plain. However, some sections have required replacement due to wire corrosion. The riprap sections, added later, protect more exposed areas and have created new rockpool habitats. The total cost of coastal defences here exceeds £12 million, but they protect thousands of homes and businesses from flooding.
Cost is a major factor in choosing coastal defences. Gabions typically cost £100-300 per metre to install, making them one of the cheaper hard engineering options. Riprap is more expensive at £1,000-3,000 per metre, but lasts much longer.
Maintenance costs also differ significantly. Gabions may need wire replacement every 15-20 years, whilst riprap mainly requires occasional rock replacement after severe storms. The total lifetime cost often favours riprap for high-energy coastlines, despite higher initial costs.
The success of gabions and riprap depends heavily on proper design and installation. Both methods work best when designed by coastal engineers who understand local wave conditions, tidal patterns and geology.
Coastal defences are considered successful if they prevent erosion and flooding whilst lasting for their expected lifespan. Gabions typically protect coastlines effectively for 20-25 years, whilst well-designed riprap can last 50 years or more.
However, success isn't just about lasting a long time. Effective coastal defences must also avoid causing problems elsewhere. Both gabions and riprap can interrupt the natural movement of sand and shingle along the coast, potentially increasing erosion in unprotected areas nearby.
Modern coastal management increasingly focuses on sustainability. This means considering climate change, sea level rise and long-term environmental impacts. Gabions and riprap may need to be raised or strengthened as sea levels rise. Some areas are now combining hard engineering with soft engineering approaches, such as beach nourishment, to create more sustainable coastal defences that work with natural processes rather than against them.
As our understanding of coastal processes improves and climate change brings new challenges, the use of gabions and riprap is evolving. New materials and designs are being developed to make these defences more effective and environmentally friendly.
Modern gabions use improved wire coatings and plastic-coated steel to resist corrosion better. Some new designs incorporate recycled materials or use specially shaped concrete blocks instead of natural rock. Riprap design is also improving, with better understanding of how to size and place rocks for maximum effectiveness.
Climate change means coastal defences must be designed for more extreme weather and higher sea levels. This often means building gabions and riprap higher and stronger than in the past, increasing costs but improving long-term protection.
