Unlock This CourseWater supply systems are the networks that collect, treat, store and distribute clean water to homes, schools, hospitals and businesses. These systems are absolutely vital for human survival and economic development. Without reliable access to clean water, communities cannot thrive and diseases can spread rapidly.
Every time you turn on a tap, you're using the end result of a complex system that may have transported water hundreds of kilometres from its original source. Understanding how these systems work helps us appreciate this precious resource and the engineering marvels that bring it to us.
Key Definitions:
Water supply systems draw from three main sources: surface water (rivers, lakes, reservoirs), groundwater (wells, boreholes accessing aquifers) and in some coastal areas, desalinated seawater. The choice depends on local geography, climate and water quality.

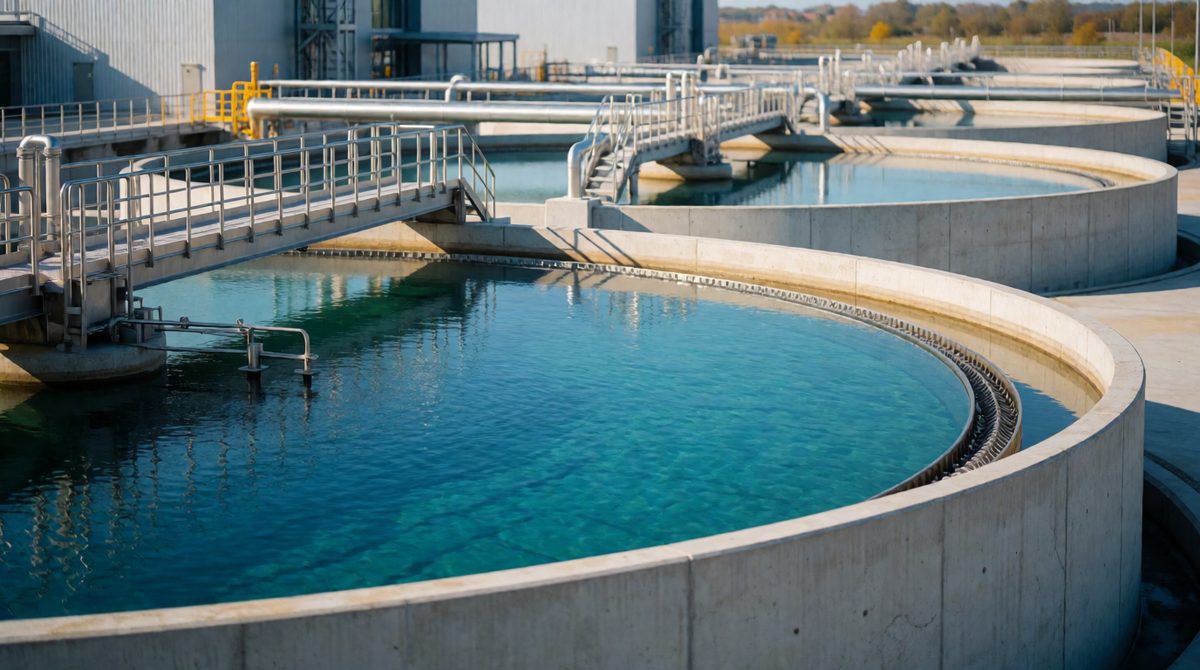

Raw water from natural sources contains bacteria, viruses, chemicals and particles that make it unsafe to drink. Water treatment plants use a multi-stage process to transform this raw water into clean, safe drinking water that meets strict quality standards.
The treatment process follows several key stages, each designed to remove different types of contamination and ensure the water is safe for human consumption.
Large debris is removed, then chemicals are added to make tiny particles clump together into larger chunks called flocs.
Heavy flocs settle to the bottom, then water passes through sand and gravel filters to remove remaining particles.
Chlorine or UV light kills harmful bacteria and viruses. Fluoride may be added to help prevent tooth decay.
A typical water treatment plant can process millions of litres per day. The Thames Water treatment works at Hampton, London, can treat up to 1,350 million litres daily - enough to fill about 540 Olympic swimming pools!
Once treated, water must be stored and distributed efficiently to reach every user when they need it. This requires careful planning and substantial infrastructure investment.
Water storage serves multiple purposes: it provides a buffer against supply interruptions, allows for peak demand periods and maintains water pressure throughout the distribution network.
Elevated storage tanks use gravity to maintain water pressure. They're filled during low-demand periods and supply water during peak times. The height determines the water pressure in the system below.
Large underground storage facilities protect water from contamination and temperature changes. They're often used in urban areas where space is limited and in regions with extreme weather conditions.
The distribution network is like the circulatory system of a city, carrying treated water through a maze of pipes to reach every building. This network must be carefully designed to maintain water quality and pressure while minimising waste.
Distribution systems use different sized pipes: large mains carry water across cities, smaller pipes serve neighbourhoods and service pipes connect individual buildings. The network includes valves, pumps and monitoring equipment.
The UK has over 350,000 kilometres of water mains - enough to stretch from London to Sydney and back again! Many of these pipes are over 100 years old and need constant maintenance and replacement.
Water supply systems face different challenges depending on location, climate and economic development. Understanding these challenges helps us appreciate the complexity of providing universal access to clean water.
Even wealthy nations face significant water supply challenges, often related to ageing infrastructure, increasing demand and climate change impacts.
Many pipes and treatment plants are decades old and need expensive replacement. Leaks waste millions of litres daily.
Changing rainfall patterns and more frequent droughts stress water supplies. Some regions face increased flooding that can contaminate sources.
Population growth and higher living standards increase water consumption. Peak summer demand can strain systems.
Many developing nations struggle with basic water infrastructure, facing challenges that affect millions of people's health and economic opportunities.
Building water treatment plants and distribution networks requires huge investments that many countries cannot afford. International aid and loans help, but progress is often slow.
Singapore has transformed from water scarcity to water security through innovation. The island nation uses four "taps": local catchment, imported water from Malaysia, recycled wastewater (NEWater) and desalinated seawater. This diversified approach ensures water security despite limited natural resources. Singapore now exports water technology worldwide and aims to be water self-sufficient by 2061.
As water becomes increasingly precious, sustainable management practices are essential. This means using water efficiently, protecting sources from pollution and developing new technologies to meet future needs.
Both supply-side and demand-side strategies help ensure sustainable water use for future generations.
Collecting and storing rainwater for later use reduces pressure on main supplies and helps during dry periods.
Treating and reusing water from sinks, showers and washing machines for irrigation and toilet flushing.
Smart meters and leak detection systems help identify waste quickly and encourage water conservation.
In 2017-2018, Cape Town, South Africa, nearly became the first major city to run out of water. A severe drought combined with growing population had depleted reservoirs to critically low levels. The city implemented strict water restrictions, launched public awareness campaigns and fast-tracked alternative water sources. Citizens reduced consumption by over 50%, helping avoid "Day Zero" when taps would have run dry. The crisis highlighted the importance of water security planning and community cooperation.
Water supply systems continue to evolve with new technologies and approaches. Smart systems, improved treatment methods and better conservation strategies will help meet the challenges of the 21st century.
Innovation in water technology offers hope for solving supply challenges and improving efficiency.
New filtration technologies can remove even more contaminants, including pharmaceuticals and microplastics. Some systems can even extract water from air humidity.
Understanding water supply systems helps us appreciate the complex infrastructure that supports modern life. As global populations grow and climate change creates new challenges, innovative and sustainable approaches to water management become increasingly important. Every drop counts and everyone has a role to play in ensuring water security for future generations.
