River Management ยป Rainfall Intensity and Flooding

What you'll learn this session

Study time: 30 minutes

  • How rainfall intensity affects flooding patterns and river behaviour
  • The relationship between precipitation types and flood risk
  • Natural and human factors that influence flood management
  • Hard and soft engineering approaches to flood control
  • Case studies of successful and unsuccessful flood management schemes
  • The role of weather forecasting in flood prevention

๐Ÿ”’ Unlock Full Course Content

Sign up to access the complete lesson and track your progress!

Unlock This Course

Introduction to Rainfall Intensity and Flooding

Rainfall intensity is one of the most critical factors determining whether a river will flood. When rain falls faster than the ground can absorb it or rivers can carry it away, flooding becomes inevitable. Understanding this relationship is essential for effective river management and protecting communities from flood damage.

Key Definitions:

  • Rainfall Intensity: The rate at which rain falls, measured in millimetres per hour (mm/hr).
  • Flood: When water overflows from a river channel onto the surrounding floodplain.
  • Discharge: The volume of water flowing through a river channel per second, measured in cubic metres per second (cumecs).
  • Lag Time: The delay between peak rainfall and peak discharge in a river.
  • Bankfull Discharge: The maximum volume of water a river channel can hold before it overflows.

🌧 Types of Rainfall and Flood Risk

Convectional Rainfall: Short, intense downpours that can cause flash floods. Common in summer when heated ground creates rapid evaporation and condensation.

Frontal Rainfall: Longer-lasting, steady rain that can saturate soil and cause prolonged flooding. Occurs when warm and cold air masses meet.

Orographic Rainfall: Heavy rainfall on windward slopes of mountains, often causing severe flooding in valleys below.

Factors Affecting Flood Risk

Several physical and human factors work together to determine how rainfall intensity translates into flood risk. Understanding these helps us predict and manage flooding more effectively.

Physical Factors

The natural environment plays a huge role in determining flood risk. Some areas are naturally more prone to flooding due to their physical characteristics.

🌲 Soil Type

Clay soils become waterlogged quickly and have low infiltration rates. Sandy soils absorb water faster, reducing surface runoff and flood risk.

🏔 Slope Gradient

Steep slopes increase surface runoff speed, reducing lag time and increasing peak discharge. Gentle slopes allow more infiltration and slower water movement.

🌳 Vegetation Cover

Trees and plants intercept rainfall, slow surface runoff and increase infiltration through root systems. Deforestation significantly increases flood risk.

Human Factors

Human activities have dramatically altered natural drainage patterns, often increasing flood risk in urban and agricultural areas.

🏢 Urbanisation

Concrete and tarmac create impermeable surfaces that prevent infiltration. Storm drains channel water quickly into rivers, reducing lag time and increasing peak discharge.

🌾 Agriculture

Ploughing up and down slopes increases surface runoff. Overgrazing removes vegetation cover. Some farming practices can increase or decrease flood risk.

🏗 Channel Modifications

Straightening rivers increases water flow speed. Removing meanders reduces the channel's capacity to hold water during peak flows.

Case Study Focus: Boscastle Flash Flood, Cornwall (2004)

On 16th August 2004, Boscastle experienced devastating flash flooding when 75mm of rain fell in just 2 hours. The steep-sided valley, impermeable slate bedrock and saturated soil from previous rainfall created perfect conditions for rapid surface runoff. The narrow valley channelled water into a destructive torrent that destroyed 58 properties and 84 cars. This case demonstrates how rainfall intensity combined with physical geography can create extreme flood events.

Flood Management Strategies

Managing flood risk requires a combination of predicting when floods will occur and implementing measures to reduce their impact. Modern flood management uses both traditional engineering solutions and newer, more sustainable approaches.

Hard Engineering Solutions

These are man-made structures designed to control water flow and protect specific areas from flooding. They're often expensive but can be very effective.

🏙 Flood Barriers and Embankments

How they work: Raised banks along rivers increase channel capacity and prevent overflow onto floodplains.

Advantages: Protect urban areas effectively, allow development on floodplains, relatively cheap to maintain.

Disadvantages: Transfer flood risk downstream, can fail catastrophically, prevent natural floodplain processes.

🌊 Dams and Reservoirs

How they work: Store excess water during heavy rainfall and release it gradually, controlling downstream discharge.

Advantages: Very effective flood control, provide water supply, can generate hydroelectric power.

Disadvantages: Extremely expensive, disrupt river ecosystems, displace communities, risk of catastrophic failure.

Soft Engineering Solutions

These work with natural processes to reduce flood risk. They're often more sustainable and environmentally friendly than hard engineering.

🌱 Floodplain Restoration

Allowing rivers to flood naturally onto floodplains reduces peak discharge and provides natural flood storage. Wetlands act like giant sponges.

🌳 Afforestation

Planting trees in catchment areas increases interception and infiltration, reducing surface runoff and extending lag time.

🌄 Sustainable Drainage

Urban design that mimics natural drainage, including permeable pavements, green roofs and retention ponds to slow water flow.

Case Study Focus: Thames Barrier, London

The Thames Barrier, completed in 1984, protects London from storm surges and high tides that could cause catastrophic flooding. The barrier has 10 steel gates that can be raised to block incoming tides. It's been used over 200 times since opening, demonstrating the ongoing threat of flooding to major cities. However, rising sea levels due to climate change mean the barrier may need replacement by 2070. This shows how flood management must adapt to changing conditions.

Flood Prediction and Warning Systems

Modern technology allows us to predict floods hours or even days in advance, giving communities time to prepare and potentially save lives.

Weather Monitoring and Forecasting

Meteorologists use satellite imagery, weather stations and computer models to predict rainfall intensity and duration. This information is crucial for flood warnings.

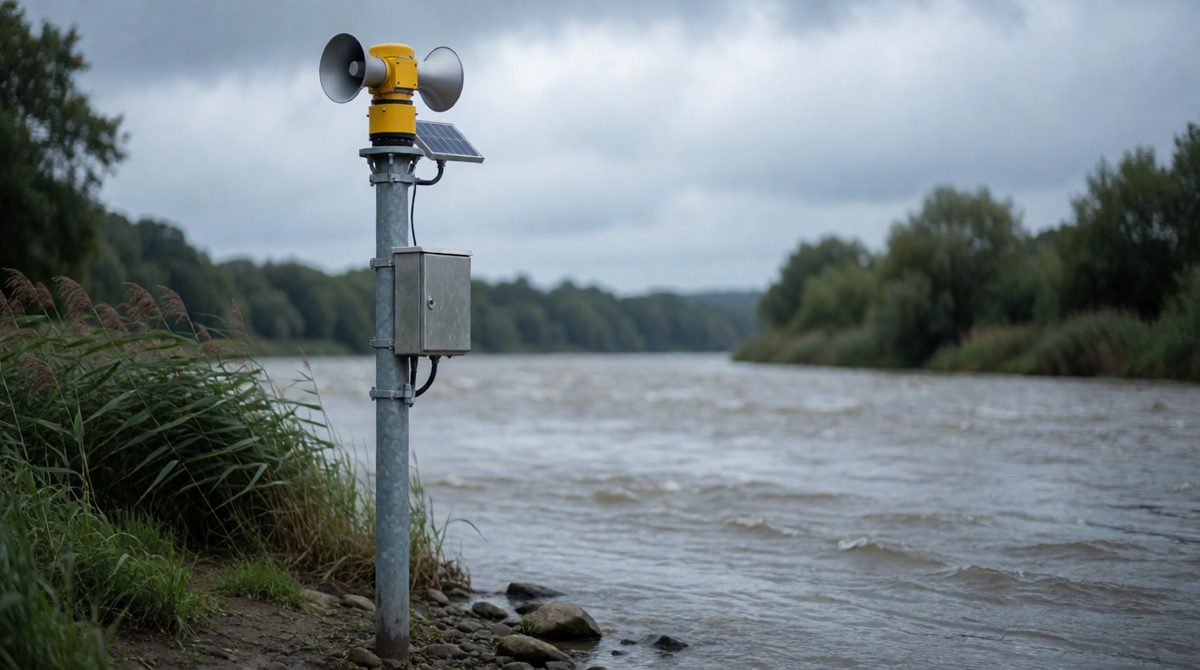

🛰 River Monitoring

Automated gauging stations measure river levels and flow rates in real-time. This data is transmitted to flood warning centres where computers calculate flood risk based on current conditions and weather forecasts.

When river levels approach critical thresholds, warnings are issued to emergency services and the public through TV, radio, mobile phone alerts and online systems.

Climate Change and Future Flood Risk

Climate change is altering rainfall patterns globally, with many regions experiencing more intense rainfall events. This means flood management strategies must adapt to changing conditions.

Changing Rainfall Patterns

Climate scientists predict that global warming will lead to more extreme weather events, including intense rainfall. This happens because warmer air can hold more moisture, leading to heavier downpours when conditions are right.

🌡 Adaptation Strategies

Flood management must become more flexible and resilient. This includes designing flood defences for higher water levels, creating more flood storage areas and developing better early warning systems.

Communities also need to adapt by avoiding development in high-risk areas and designing buildings that can cope with flooding.

Case Study Focus: Netherlands Delta Works

The Netherlands has developed the world's most advanced flood management system, protecting a country where 60% of the population lives below sea level. The Delta Works includes storm surge barriers, dikes and flood gates that can protect against a 1-in-10,000-year flood event. The system demonstrates how comprehensive planning and massive investment can protect entire nations from flooding. The Dutch approach combines hard engineering with careful land-use planning and is being copied worldwide.
